PE100 PE80 Water Well Flexible Black Pipe Blue Line
PE100 PE80 Water Well Flexible Black Pipe Blue Line
PE100 PE80 Water Well Flexible Black Pipe Blue Line
PE100 PE80 Water Well Flexible Black Pipe Blue Line
PE100 PE80 Water Well Flexible Black Pipe Blue Line
1 / 5
PE100 PE80 Water Well Flexible Black Pipe Blue Line
PE100 PE80 Water Well Flexible Black Pipe Blue Line
PE100 PE80 Water Well Flexible Black Pipe Blue Line
PE100 PE80 Water Well Flexible Black Pipe Blue Line
PE100 PE80 Water Well Flexible Black Pipe Blue Line

PE100 PE80 Water Well Flexible Black Pipe Blue Line

Customization: Available
Material: PE
Hardness: Hard Tube
Send Inquiry

Product Description

Basic Information

Type: Thermoplastic Pipe
Color: Black
Hollow: Hollow
Shape: Round
Usage: Drainpipe, Water Supply Pipe, Threading Pipe, Wire and Cable Pipe, Agricultural Irrigation Pipe, Corrugated Pipe
Transport Package: Packing
Origin: Ningbo
HS Code: 3917210000
Production Capacity: 200000ton/Year

Product Description

High Density Polyethylene Pipe (PE100)

Main Characteristics

  • Light weight, long service life: The weight of HDPE pipe is one eighth that of steel pipe, while its service life is 8-10 times more than steel pipe.
  • Excellent anti-corrosion & wear-resistance: HDPE pipe has great corrosion resistance and anti-aging properties. It performs well under high impact and pressure, suitable for various piping projects.
  • High-toughness: Highly resistant to internal and external impacts. It can be bent underwater and offers excellent anti-wave performance. Concave-convex areas within 30° can be connected directly.
  • Low noise transportation: Smooth inner surface leads to low fluid resistance and minimal noise during media transport.
  • Easy installation: No anti-corrosion treatment or welding work required, significantly reducing installation complexity and labor costs in special environments.

Applications

  • Dredging Industry: Floating dredge pipes for rivers, lakes, and ponds.
  • Natural gas and coal gas transportation.
  • Food and chemical industry processing.
  • Ore and mud transportation.
  • Replacement for traditional cement, cast iron, and steel pipes.
  • Landscaping and municipal water supply systems.

Specifications

Outer Diameter (mm) Standard SDR / Working Pressure
SDR26 SDR21 SDR17 SDR13.6 SDR11
6 bar 8 bar 10 bar 12.5 bar 16 bar
32----3
40----3.7
50----4.6
63---4.75.8
75--4.55.66.8
90-4.35.46.78.2
1104.25.36.68.110
1254.867.49.211.4
1606.27.79.511.814.6
2007.79.611.914.718.2
2509.611.914.818.422.7
31512.11518.723.228.6
40015.319.123.729.436.3
50019.123.929.736.845.4
63024.13037.446.357.2
80030.638.147.458.8--
100038.247.759.3----
120045.957.270.6----
Other Sizes of HDPE Pipe can be made upon request

Product Display

HDPE Pipe Display 1
HDPE Pipe Display 2

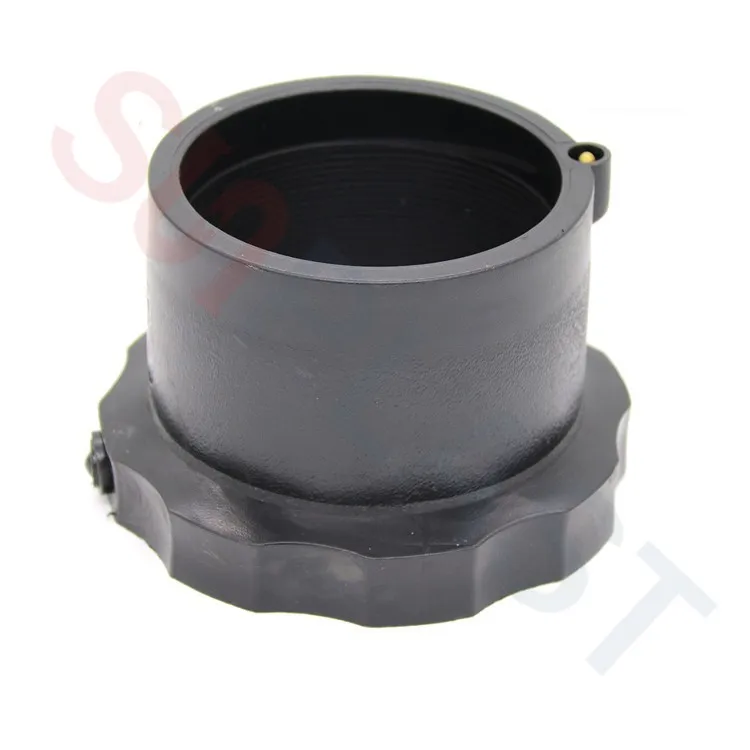

HDPE Pipe Display 3

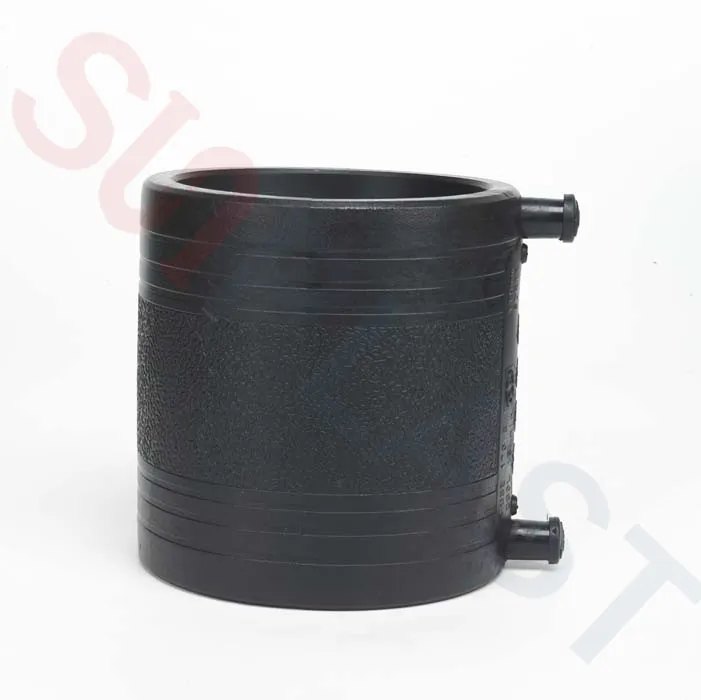

HDPE Pipe Display 4

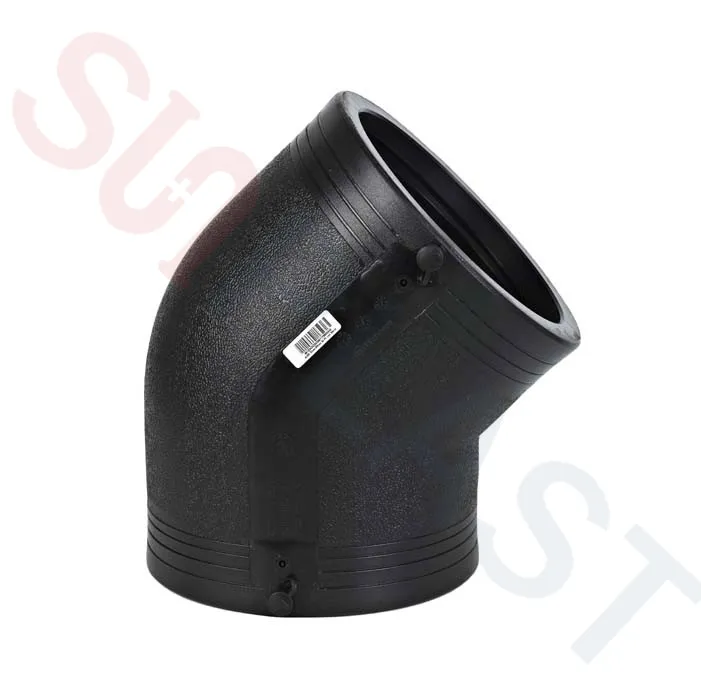

HDPE Pipe Display 5

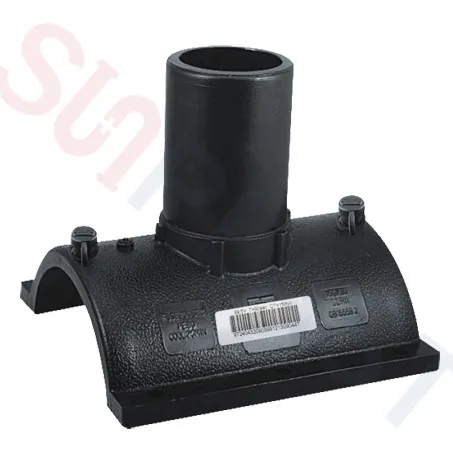

HDPE Pipe Display 6
HDPE Pipe Display 7

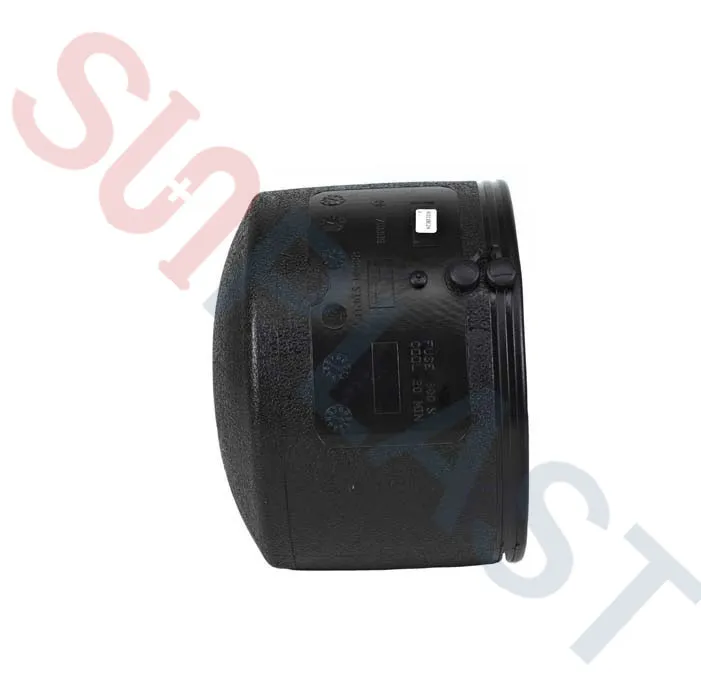

HDPE Pipe Display 8

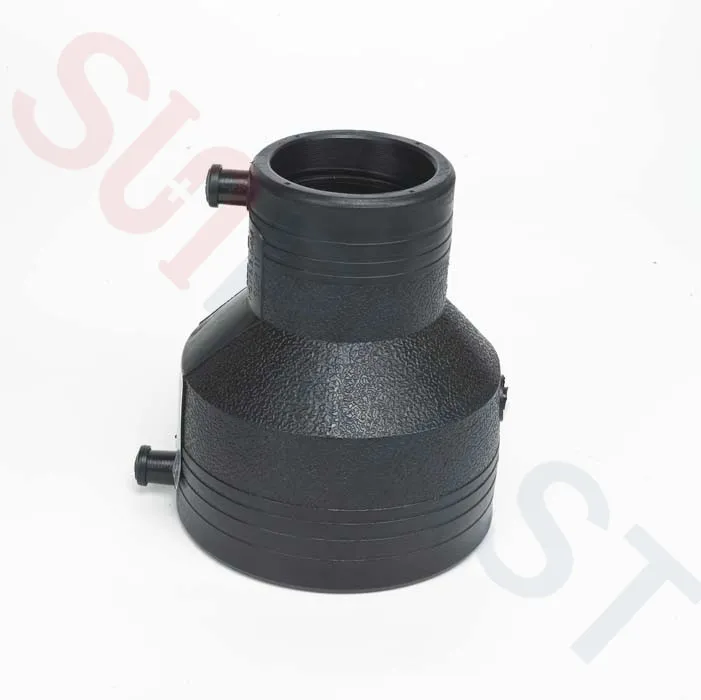

HDPE Pipe Display 9

Frequently Asked Questions

Q1: What are the main advantages of HDPE pipes compared to steel pipes? HDPE pipes are significantly lighter (about 1/8th the weight of steel) and offer a much longer service life, typically 8-10 times longer than steel pipes in similar conditions.
Q2: Can these pipes handle high-pressure applications? Yes, our HDPE pipes are available in various SDR ratings (SDR11 to SDR26), supporting working pressures ranging from 6 bar up to 16 bar.
Q3: Is the HDPE pipe suitable for dredging and sand suction? Absolutely. HDPE pipe is widely used in the dredging industry for river channel, lake, and pond dredging due to its high toughness and wear resistance.
Q4: How does the pipe perform in corrosive environments? The PE100 material provides excellent anti-corrosion and anti-aging properties, making it ideal for chemical transportation and underground water supply systems.
Q5: Is installation complicated for these pipes? No, the pipes are designed for easy installation. They require no welding or anti-corrosion treatments, which helps reduce labor costs and installation time significantly.
Q6: What is the maximum diameter available for these pipes? Standard production goes up to 1200mm in outer diameter, but other sizes can be manufactured upon specific request to meet project needs.
