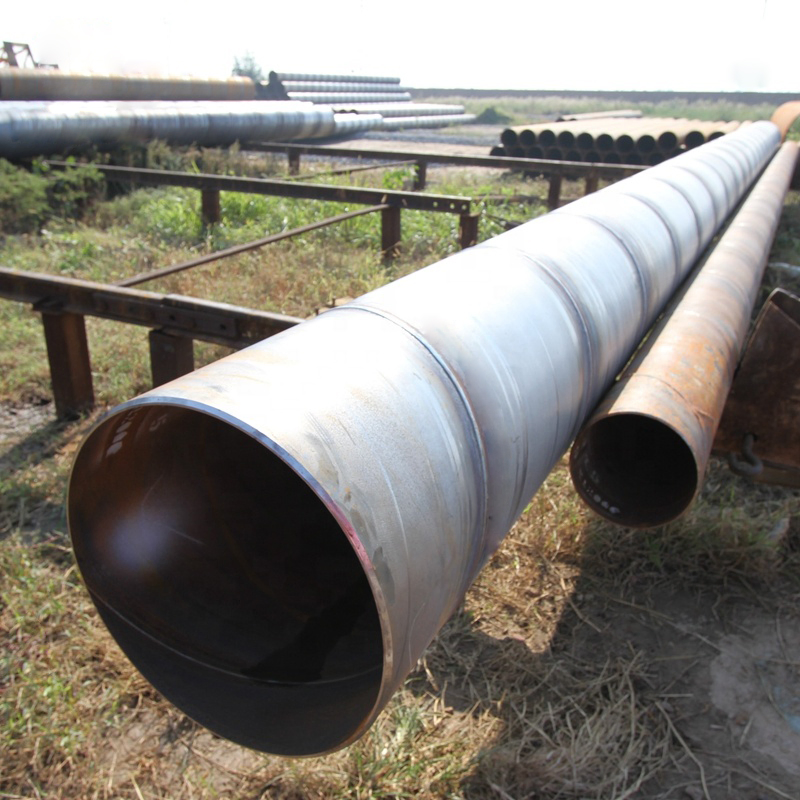

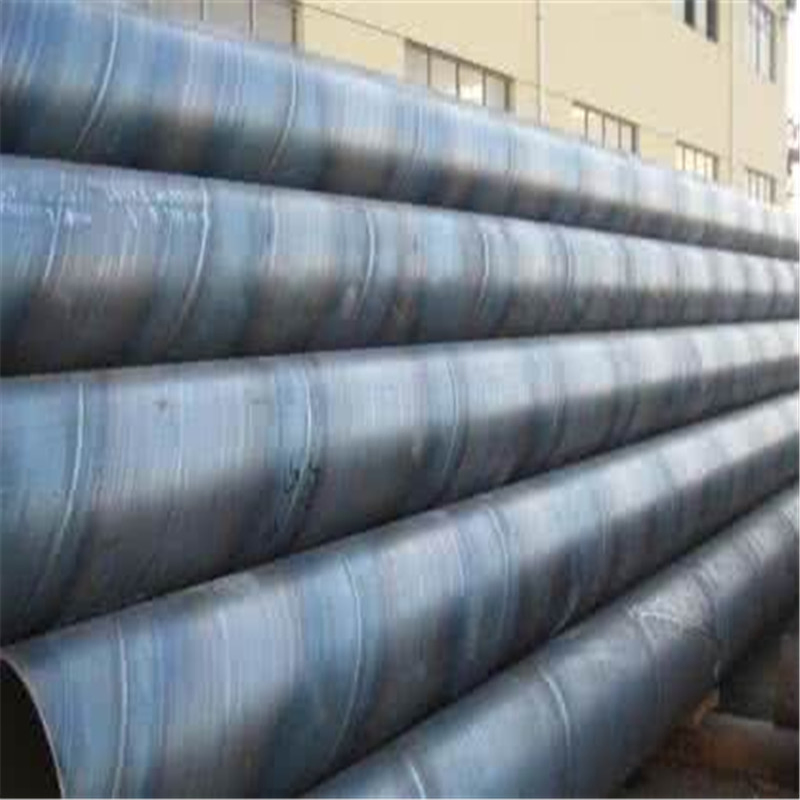

Dactron Pipe
1 / 5

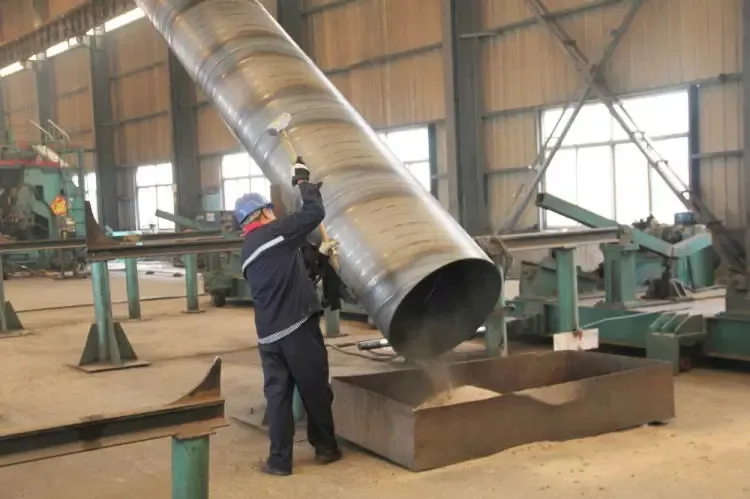

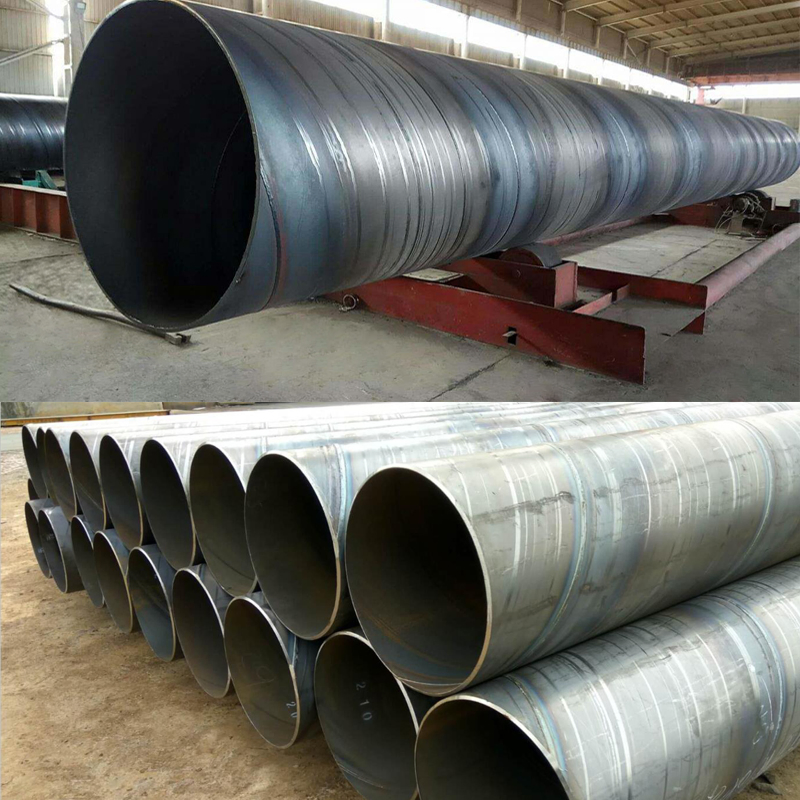

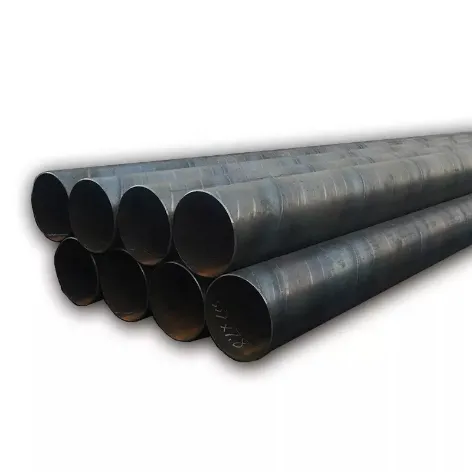

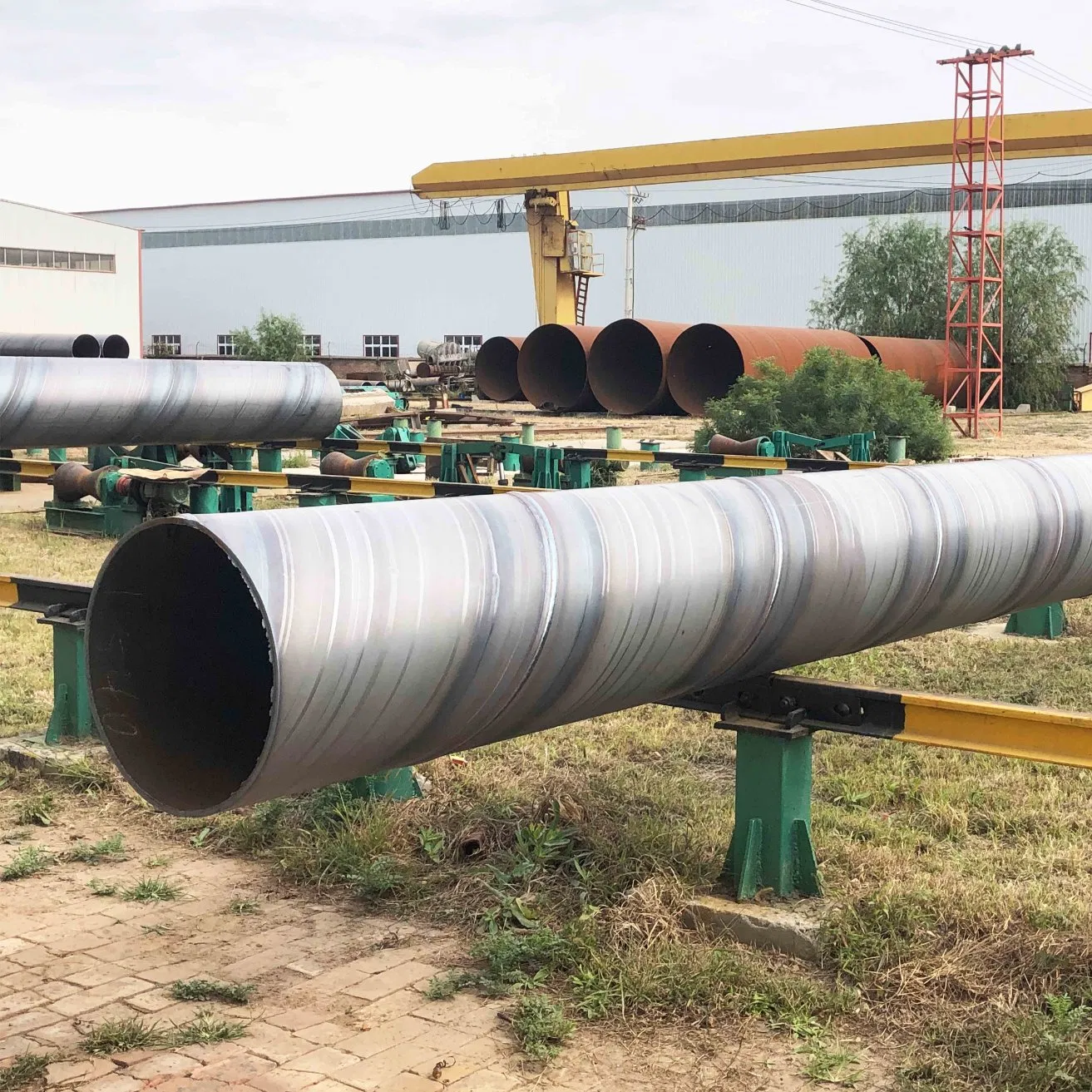

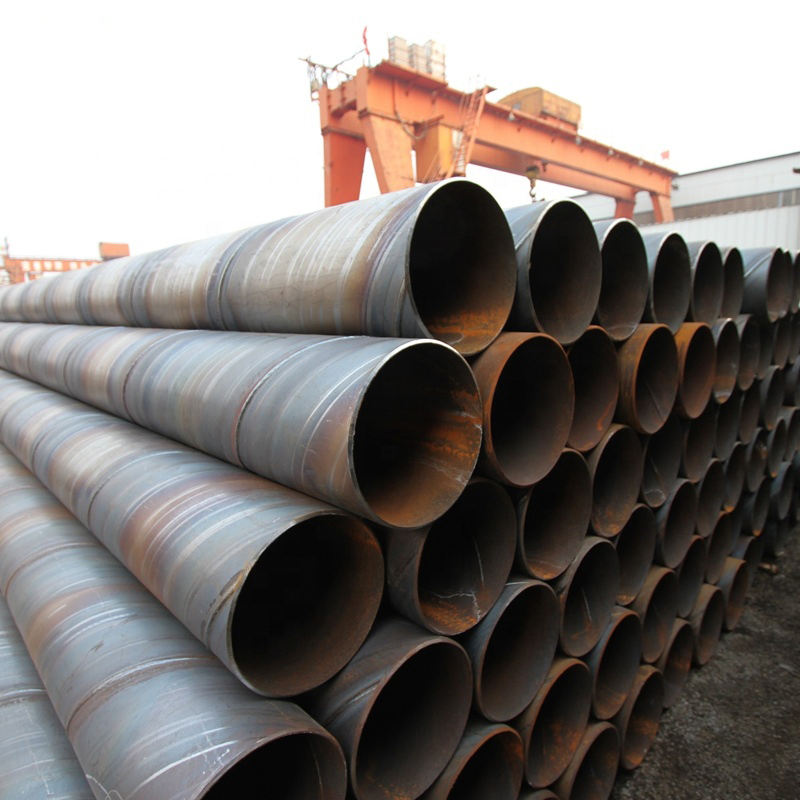

It is made by rolling low-carbon carbon structural steel or low-alloy structural steel strip according to a certain spiral angle (called forming angle) into a tube blank, and then welding the tube seam together. It can be made with a narrower strip steel produces large diameter steel pipes. Its specifications are expressed by outer diameter * wall thickness, and the welded pipe shall be ensured that the hydraulic test, the tensile strength of the weld and the cold bending performance must meet the requirements.
The production of spiral welded steel pipes can reflect the advantages of high quality and high efficiency. The production capacity of one spiral welded pipe unit is equivalent to 5-8 sets of straight seam welded pipe equipment. Unified production process specifications and quality assurance systems are utilized to meet high welding quality requirements and piping manufacturing grades.
| Production | Spiral Welded Steel Pipe |
| Standard | API 5L, API 5CT, SY/T5037, SY/T5040, GB/T9711.1, GB/T9711.2, A, B, X42-X80, L175-L555, L245NB, etc. |
| Material | 1.0033, 08F, A53, A106, Q235, Q345b |
| Out Diameter | 159mm - 3200mm |
| Wall Thickness | 3mm - 30mm |
| Length | 5.8m - 11.8m, or as customer's requirements. |
| Main Market | Middle East, Africa, Southeast Asia, USA, Canada, South America |
| Technique | SAW, ERW welding etc. |
| Usage | 1. Piling projects; 2. Heat-supply projects; 3. Conveying drinking water, drainage, coal gas, fuel gas, mine slurry; 4. API5L Petroleum and natural gas pipeline; 5. Chemical industry; 6. Electric power engineering. |
| Package | 1. Bundle packing or in bulk; 2. Bevelled or plain ends; 3. Marks as per request; 4. Surface treatment: Varnish/2PP/2PE/3PE/3PP/FBE coating; 5. Protecting caps. |
| Delivery Time | About 20 days after receipt of deposit or L/C. |
| External Coating | FBE, 2PE, 3PE, 3PP etc. |
| Pipe End | Plain end, beveled end, PVC covered, capped, threaded and coupled. |
