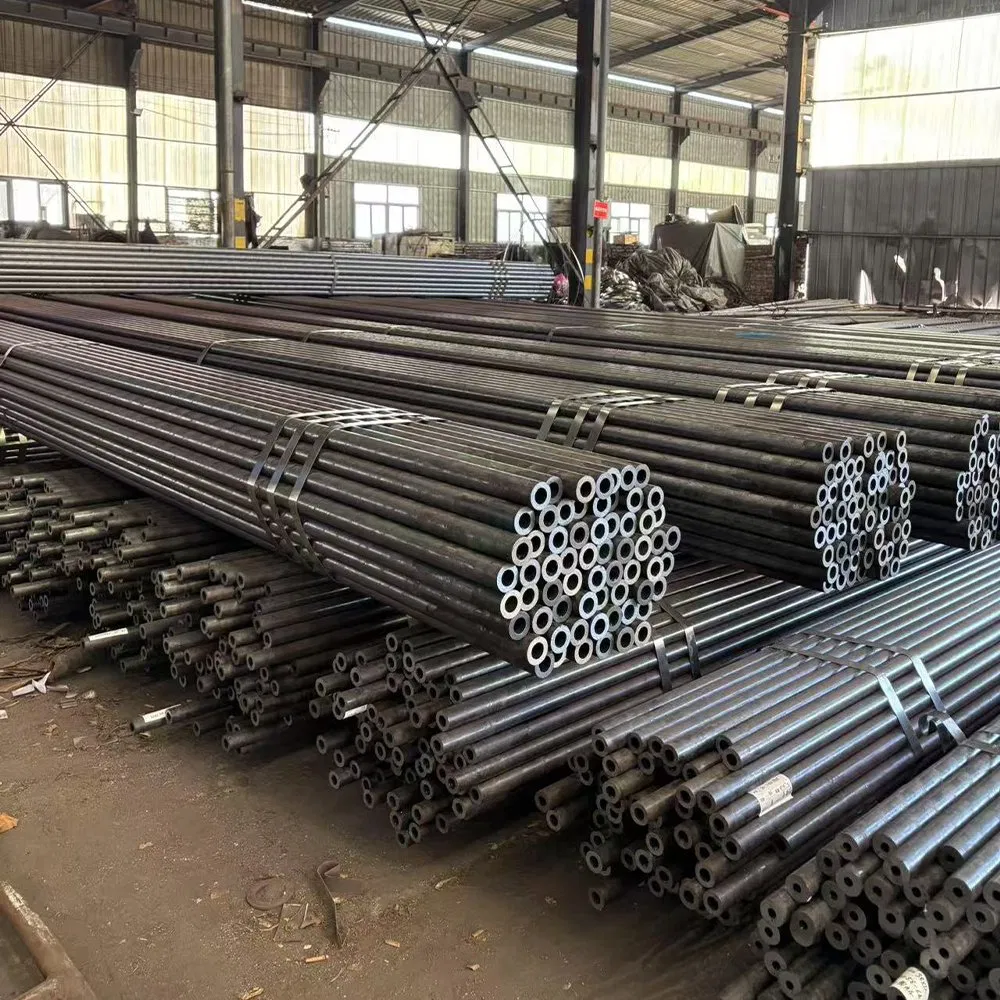

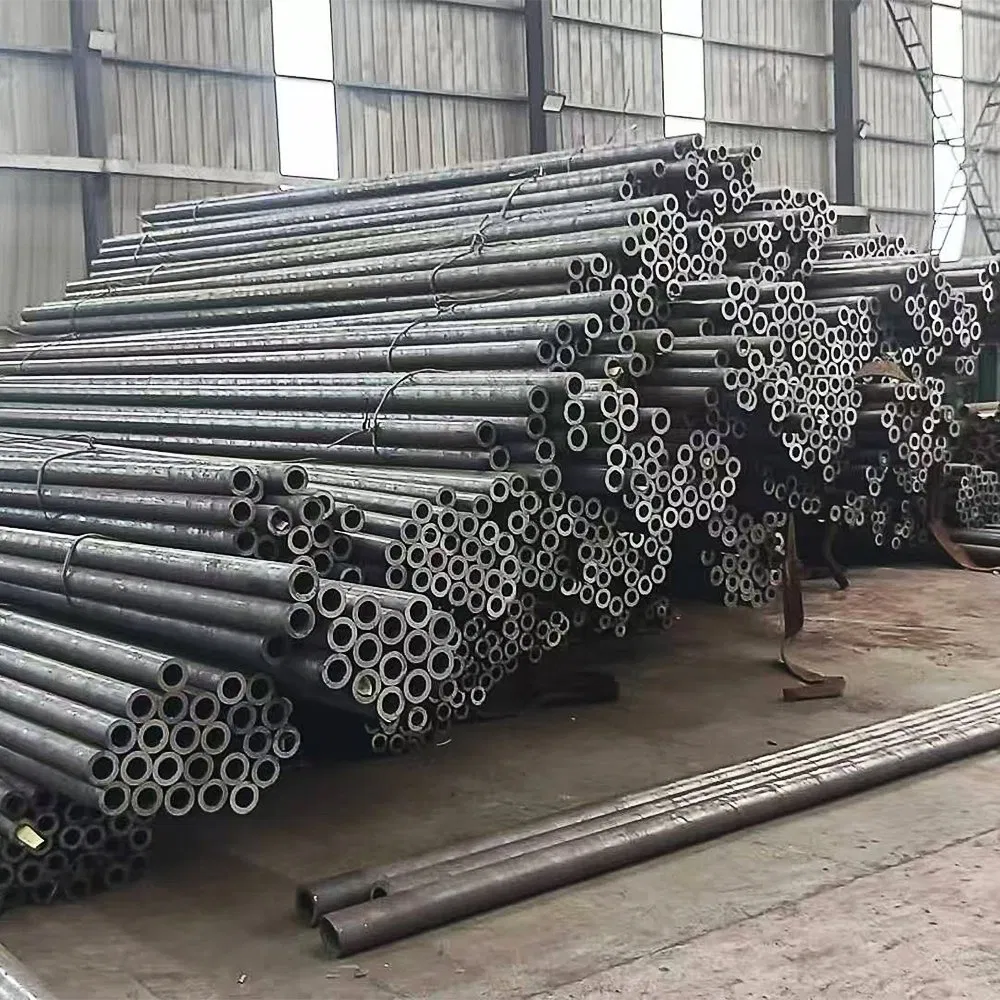

Dactron Pipe
1 / 5
| Model NO. | Q235/Q235B/Q345/Q345B/Q195/St37/St42 |
|---|---|
| Type | Seamless |
| Technique | Hot Rolled |
| Material | ASTM/AISI/SGCC/CGCC/Tdc51dzm/Tdc52dts350gd/Ts550gd |
| Surface Treatment | Black |
| Usage | Pipeline Transport, Boiler Pipe, Hydraulic/Automobile Pipe, Oil/Gas Drilling, Food Industry, Machinery, Construction |
| Section Shape | Round |
| Material Grade | A106, A53, 20#, 45#, Q235B, Q355B, 20g, 40cr, 35CrMo, 42crmo |
| Size Range | OD: 10-1000mm, WT: 2-100mm |
| Quality Certification | EN 10204 3.1 MTC, ISO9001 Certificate Provided |
| Production Capacity | 300,000 Tons / Year |
| Region Standard | Associated Standards |
|---|---|
| China (GB) | GB/T8162, GB/T8163, GB5310, GB6579, GB9948 |
| U.S.A. (ASTM) | ASTM A53, A106, A178, A179, A192, A210, A213, A333, A335, 5L, 5CT |
| Japan (JIS) | JIS G3452, G3454, G3456, G3457, G3458, G3460, G3461 |
| Germany (DIN) | DIN 1626, 17175, 1629-4, 2448, 2391, 17200 |
| Russia (GOST) | GOST 8732, 8731, 3183 |
| OD / WT | 3mm | 4mm | 5mm | 6mm | 7mm |
| 32mm | 2.146 | 2.762 | 3.329 | 3.847 | - |
| 42mm | 2.885 | 3.749 | 4.562 | 5.327 | - |
| 50mm | 3.477 | 4.538 | 5.549 | 6.511 | 7.423 |
| 60mm | 4.217 | 5.524 | 6.782 | 7.990 | 9.149 |
| 89mm | 6.363 | 8.385 | 10.358 | 12.281 | 14.156 |

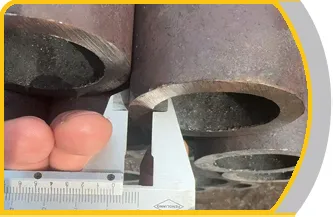

Uniform thickness and high strength. Maintains integrity under high pressure and high temperature with superior wear and impact resistance.
Excellent resistance to corrosion. Ensures no deformation or bursting, significantly lowering long-term maintenance costs and frequency of replacement.

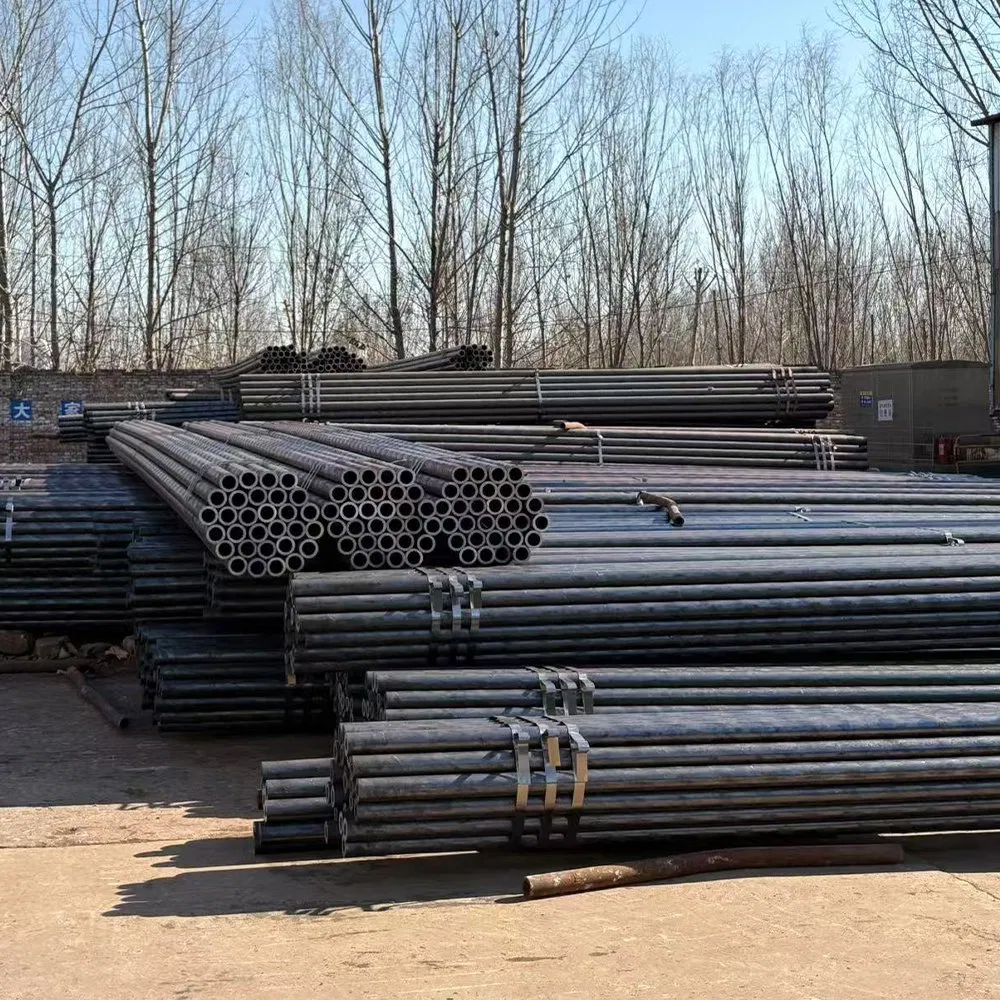

Wide range of specifications kept in stock. We provide seamless support for large engineering procurement needs to ensure timely delivery.
24-hour quick response. Dedicated personnel track the entire transportation process, ensuring every cooperation is worry-free.

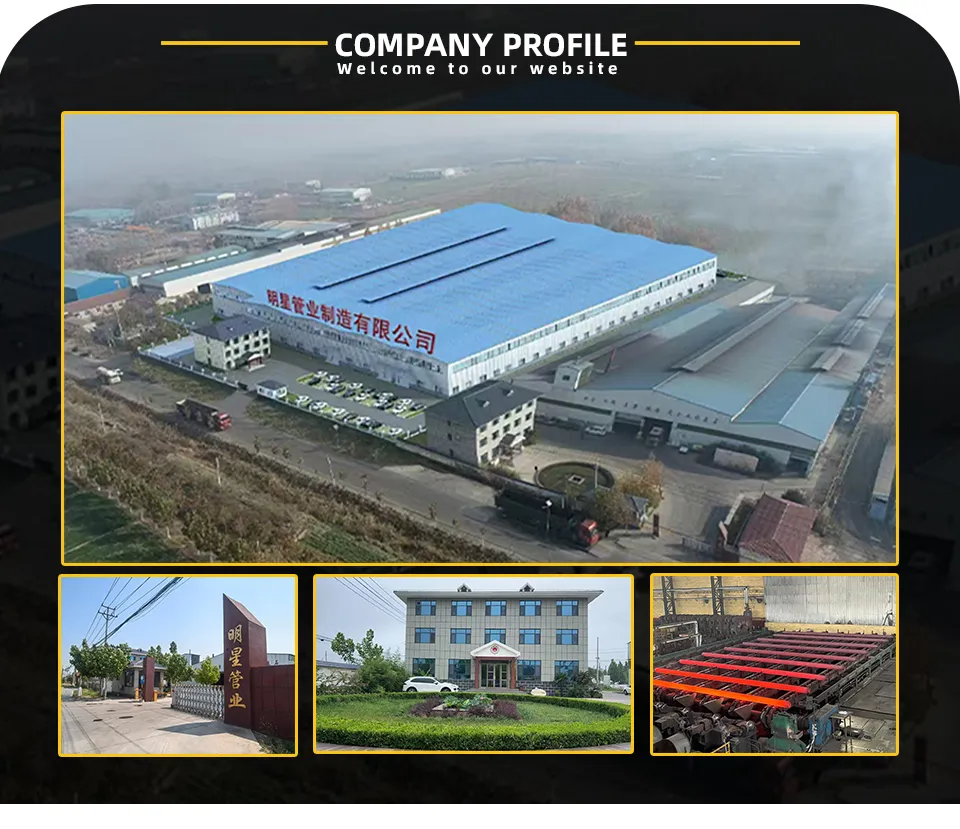

Operating since 2016, we integrate modern production with global trade. Specializing in Seamless Steel Pipes, Square Pipes, Galvanized Pipes, and Color-Coated Plates, our products are known for robust quality. Adhering to the principle of "keeping pace with customers," we offer high-quality products built on integrity and fair pricing.
