Basic Info
Application
Water Pipelines
Welding Process
Submerged Arc Welding
Length Option
6m/12m/Customizable
P
Product Description

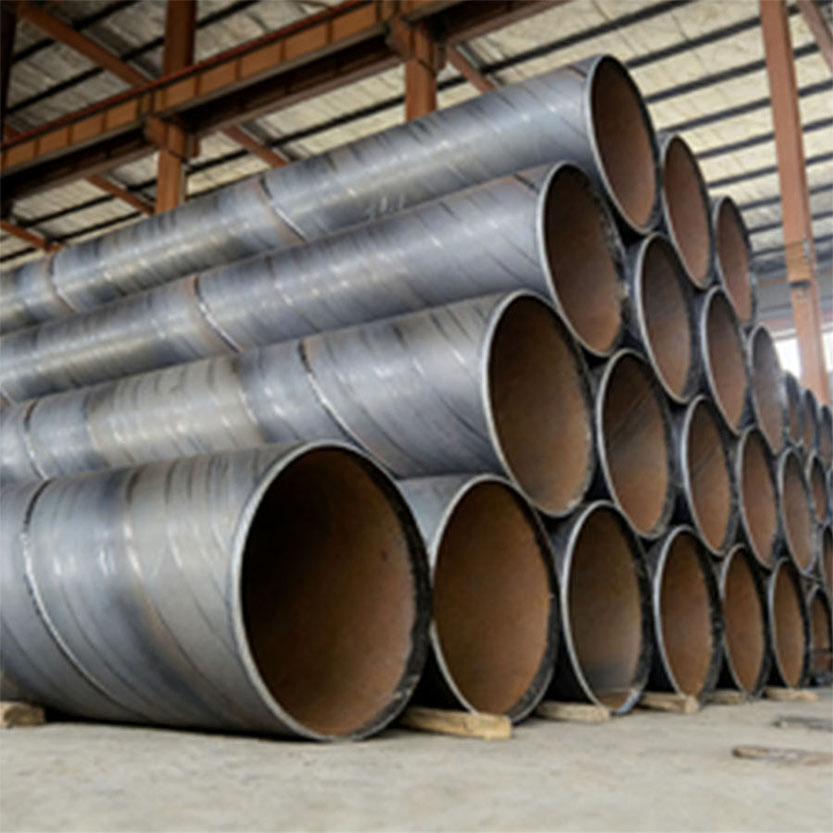

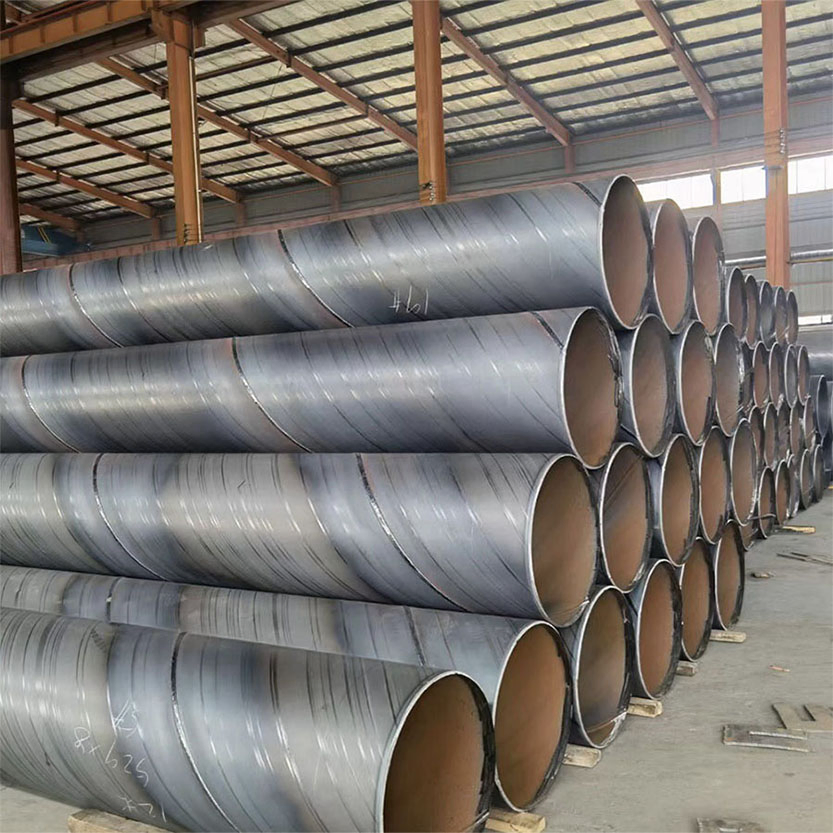

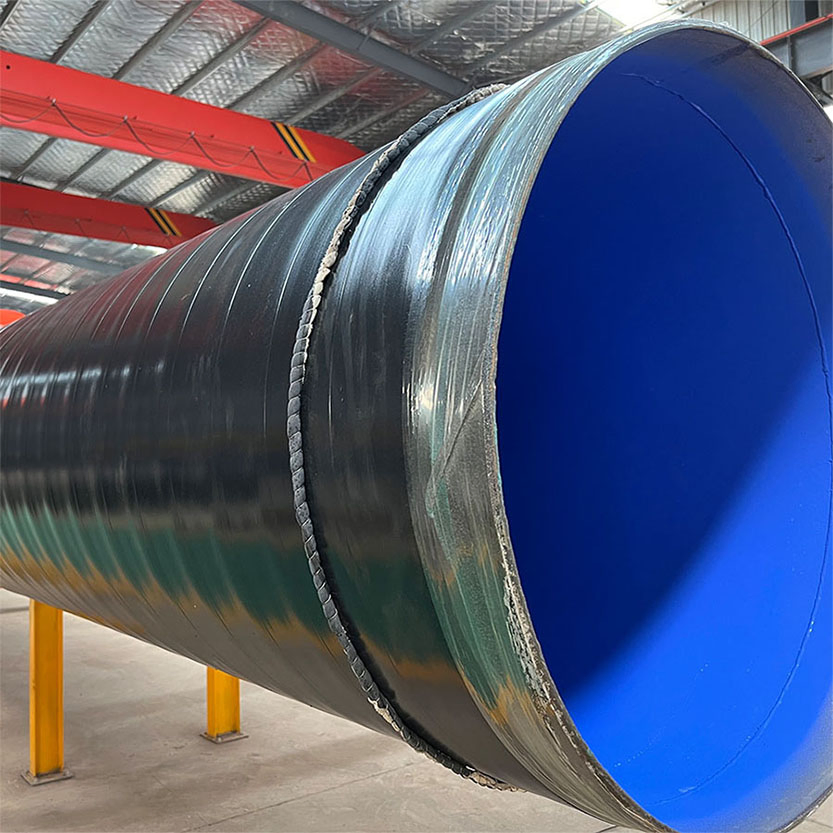

Manufactured from high-grade steel, these pipes feature a continuous spiral welding process that creates exceptional structural strength, allowing them to withstand high pressure, heavy loads, and harsh environmental conditions. Their smooth inner surface ensures efficient fluid or gas flow, minimizing friction and energy loss.
| Attribute |
Details |
| Material | Q235B, Q355B, API 5L GR.B, X42-X80, and customizable high-grade steel |
| Manufacturing Process | Continuous submerged arc spiral welding |
| Outer Diameter Range | 219mm – 4000mm (custom sizes available) |
| Wall Thickness Range | 5mm – 50mm |
| Length | 6m / 12m (fixed length) or customized as required |

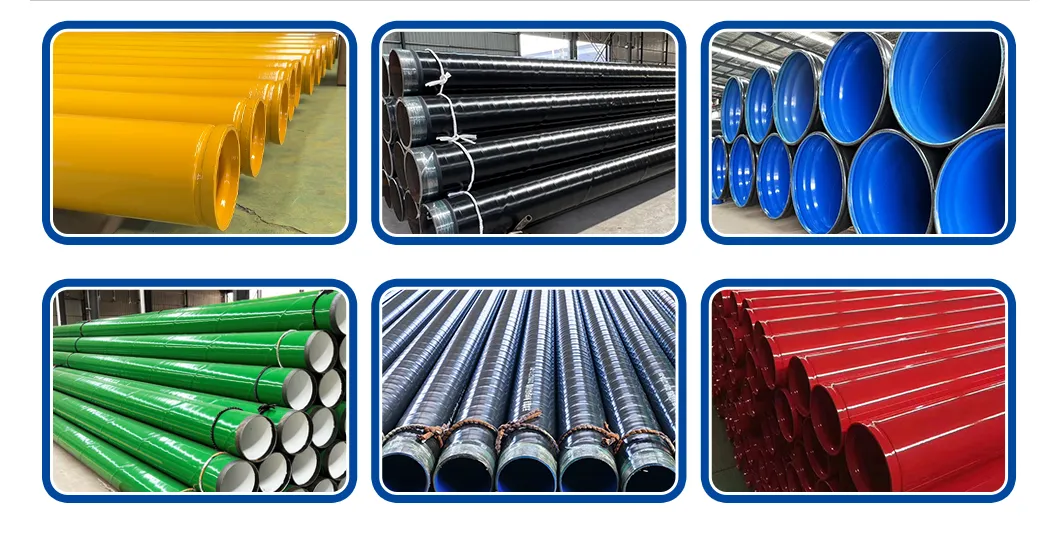

| Surface Treatment | Black painting, 3PE anti-corrosion coating, FBE coating, galvanizing |
| Standards Compliance | API 5L, ASTM A252, ASTM A53, GB/T 3091, GB/T 9711 |
| Core Applications | Water supply/drainage, oil & gas transmission, bridge piling, structural support |
C

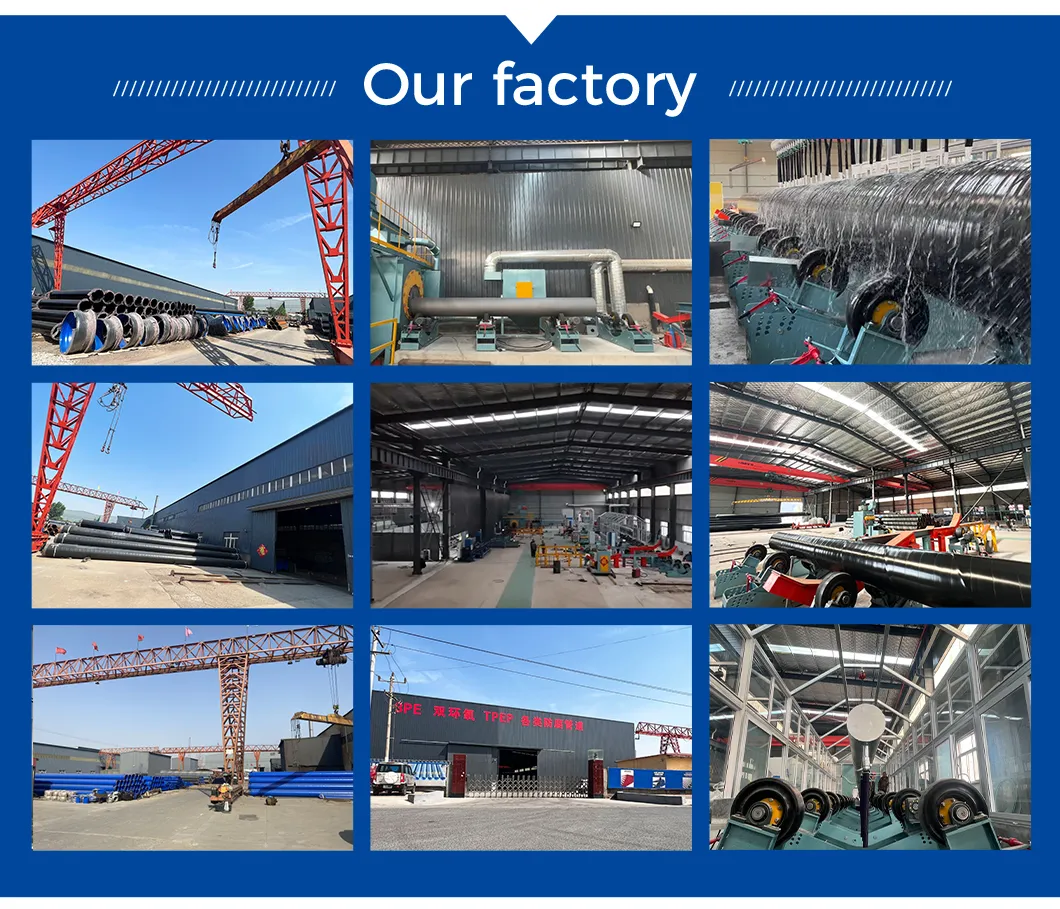

Manufacturing Capability

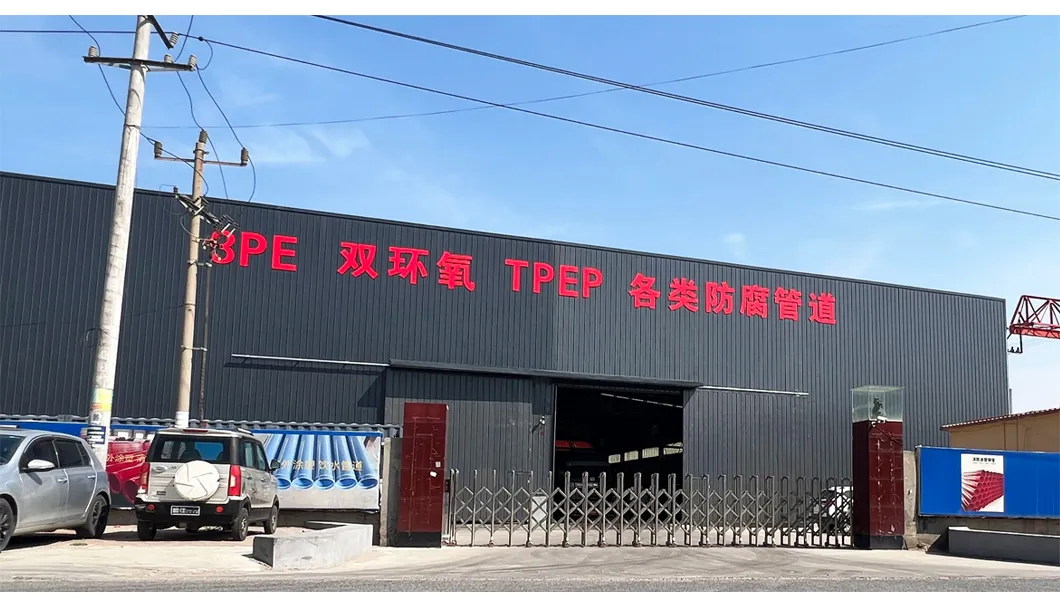

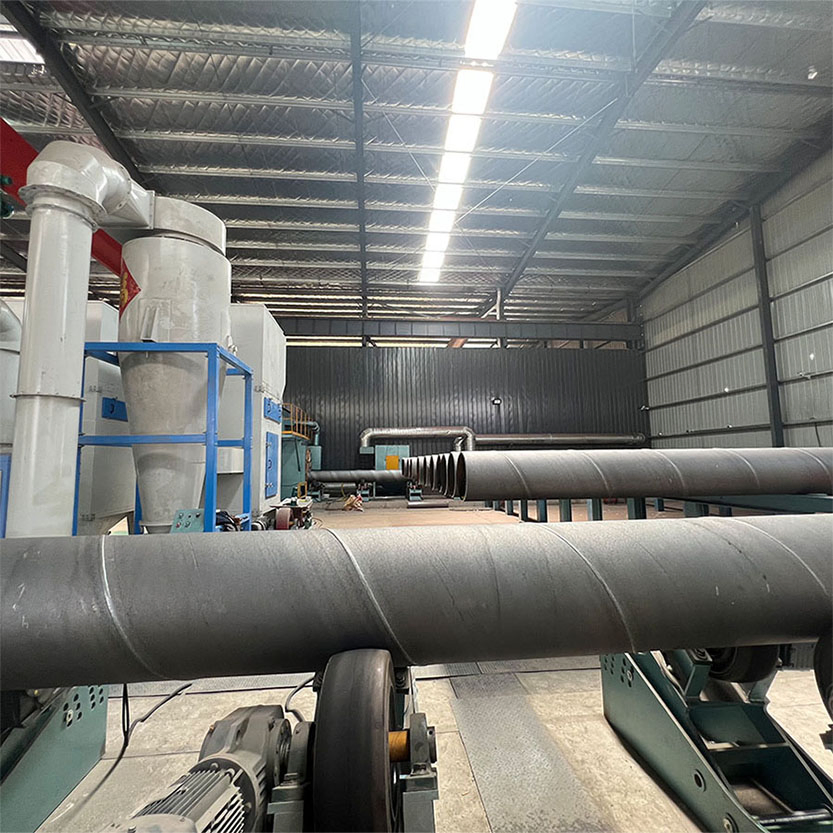

Established for 16 years, our manufacturing facility is a professional source factory specializing in anti-corrosion pipes and various types of steel. We operate a production area exceeding 5,000 square meters. The company produces DN15-DN4000 plastic-coated composite steel pipes and anti-corrosion steel pipes such as 3PE/TPEP/FBE/2FBE, used for water supply pipelines, oil pipelines, gas pipelines, fire-fighting pipelines, and mining pipelines. We own four modern anti-corrosion pipe production lines and provide professional customization services.
Q
Certifications & Exhibitions
?
Frequently Asked Questions
1. What are the primary uses of SSAW steel pipes?
SSAW (Spiral Submerged Arc Welded) steel pipes are primarily used for long-distance transportation of water, oil, and gas, as well as for structural piling and bridge construction.
2. What diameter range can you provide?
We offer an outer diameter range from 219mm up to 4000mm, with options for custom sizing based on specific project requirements.
3. Which anti-corrosion coatings are available?

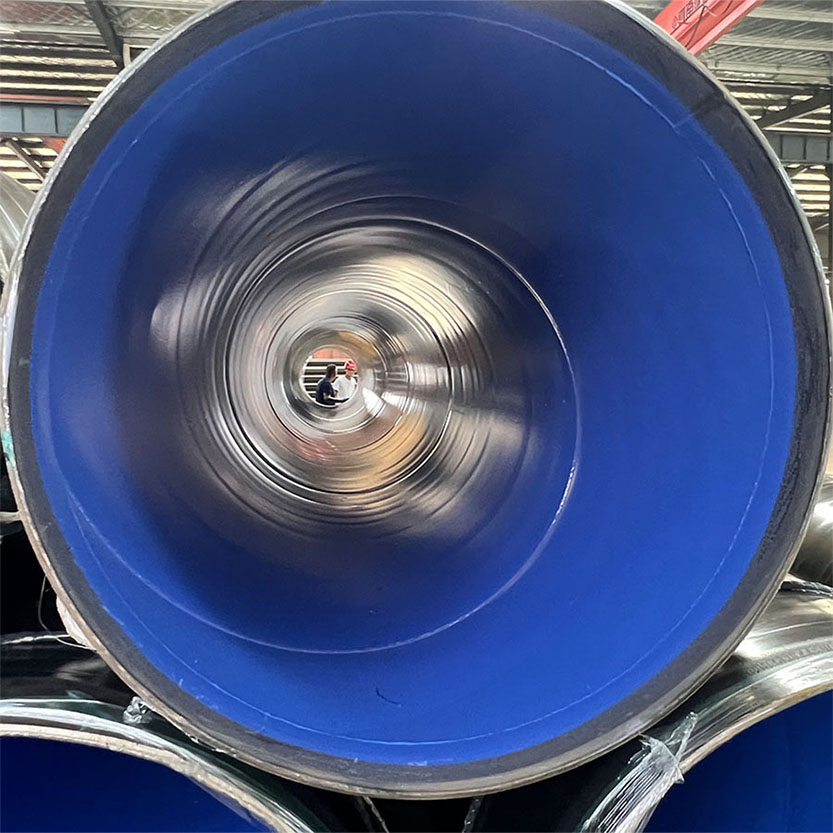

We provide several high-quality coatings including 3PE (Three-Layer Polyethylene), TPEP, FBE (Fusion Bonded Epoxy), and galvanizing to ensure durability in underground environments.
4. What standards do your steel pipes comply with?
Our products meet international standards such as API 5L, ASTM A252, ASTM A53, and Chinese national standards like GB/T 9711.
5. Can the wall thickness be customized?
Yes, we can manufacture pipes with wall thicknesses ranging from 5mm to 50mm depending on the material grade and application pressure.
6. What is the typical length of each pipe?
Standard lengths are typically 6 meters or 12 meters, but we can customize the length to suit your specific transportation or installation needs.
