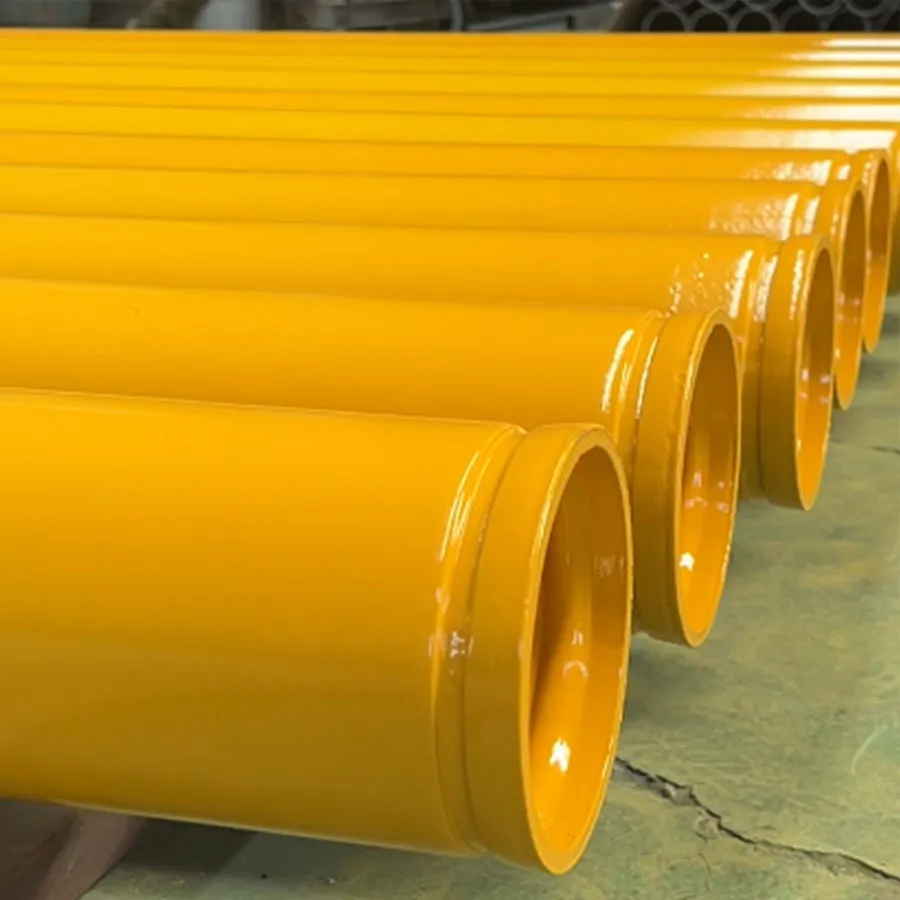

The internal and external epoxy resin coated steel pipe is a composite pipe material formed by uniformly coating molten epoxy resin powder on the inner and outer walls. It combines the structural strength of steel with the superior anti-corrosion performance of epoxy coatings, achieving integrated protection against internal medium corrosion and external environmental impact.

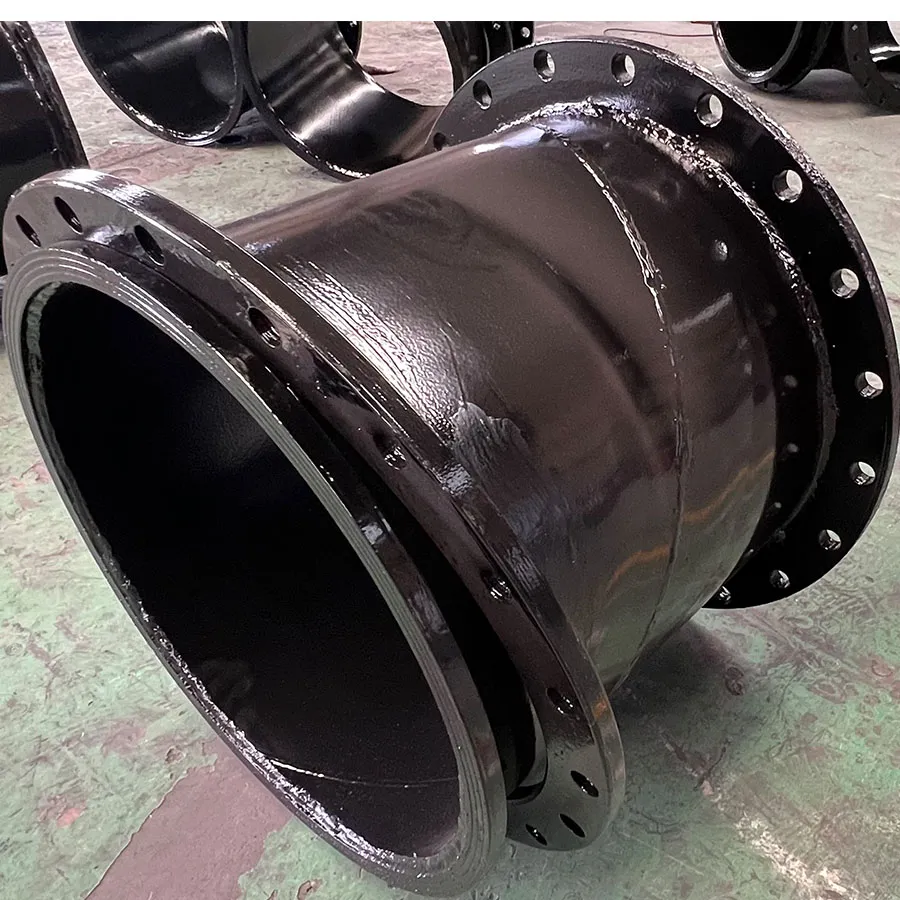

Dual Protection: The outer wall resists chemical and electrochemical corrosion in soil, atmosphere, and acidic/alkaline environments. The dense epoxy coating forms an inert barrier, isolating the steel from corrosive elements. Plastic-coated fittings (elbows, tees, flanges) ensure seamless connection and system continuity.

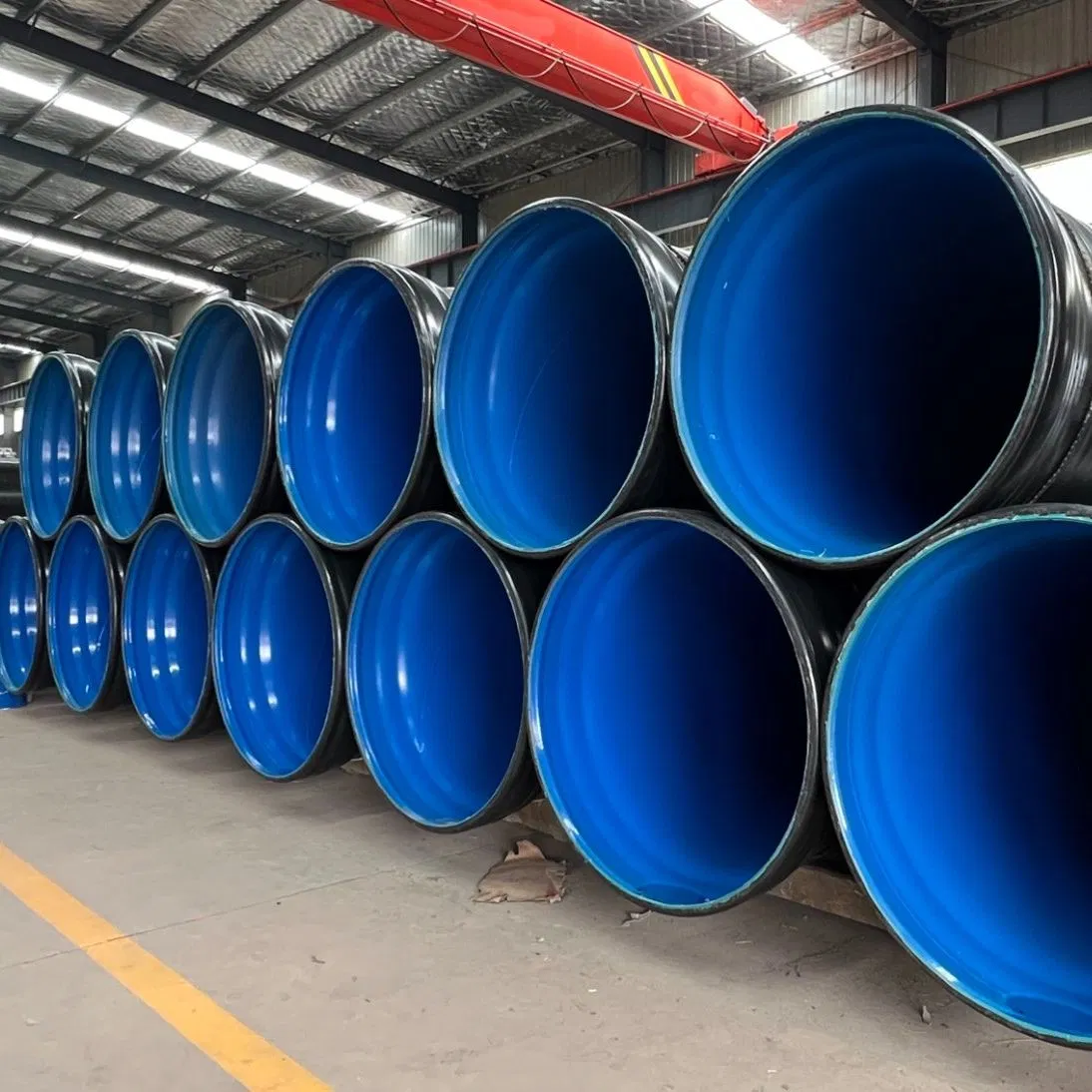

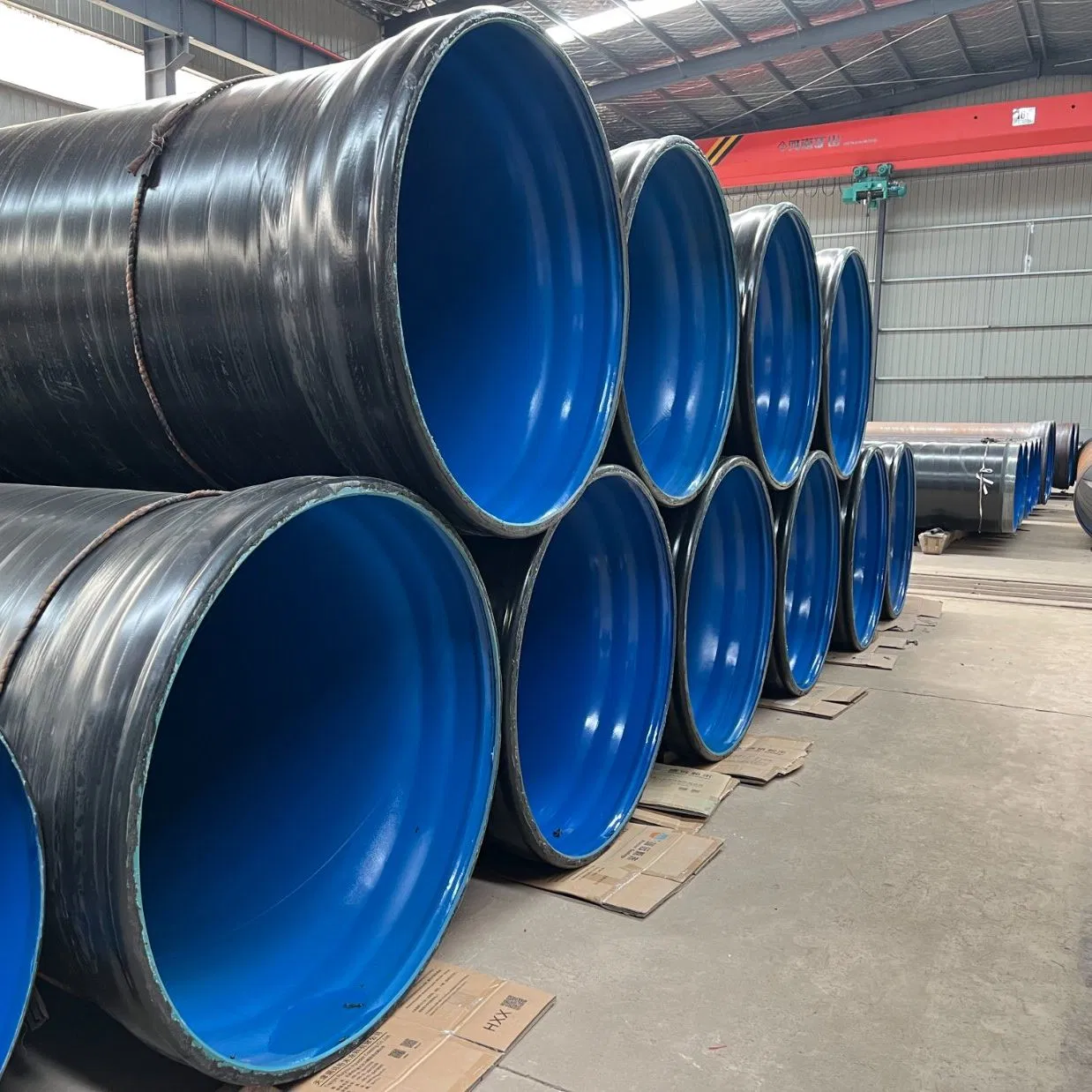

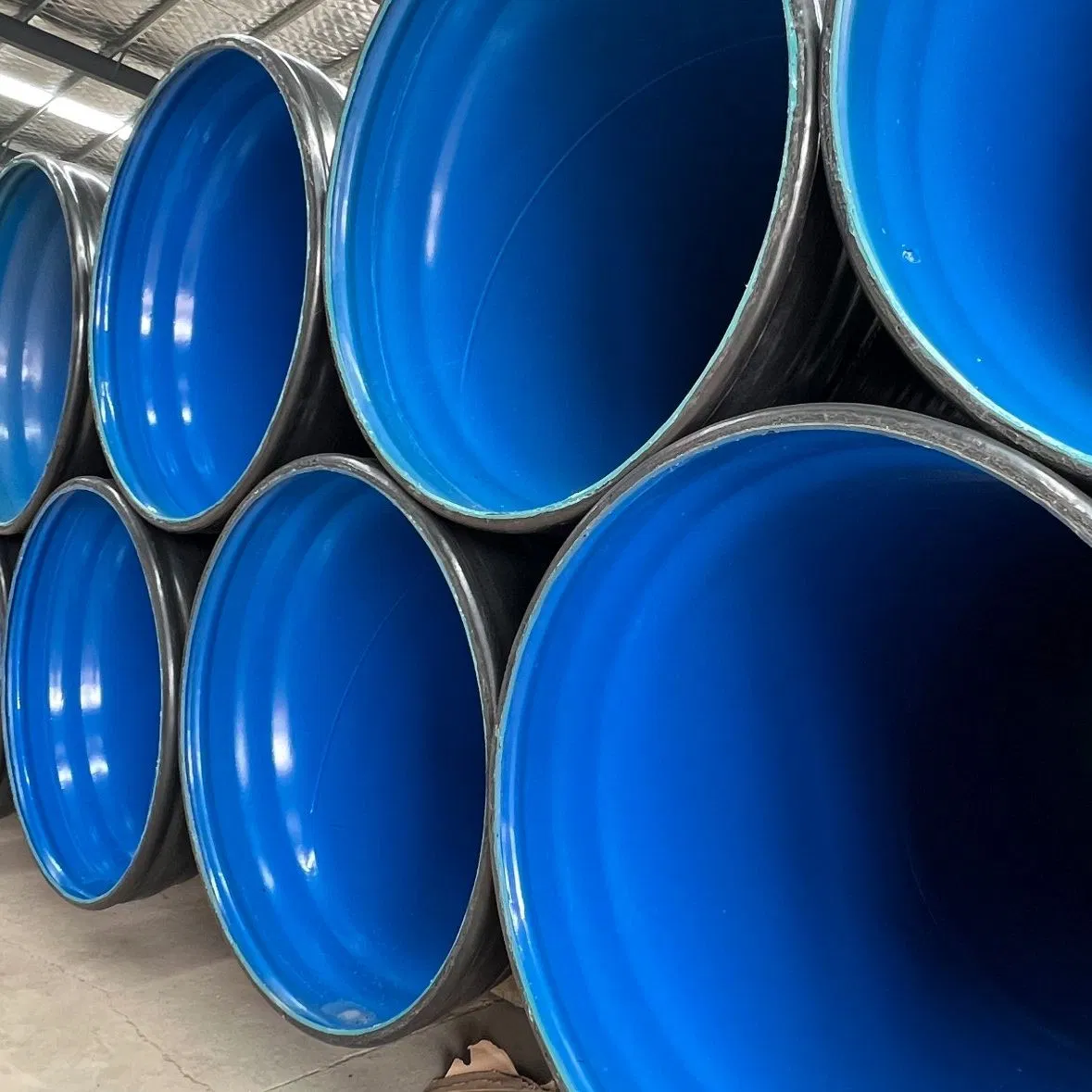

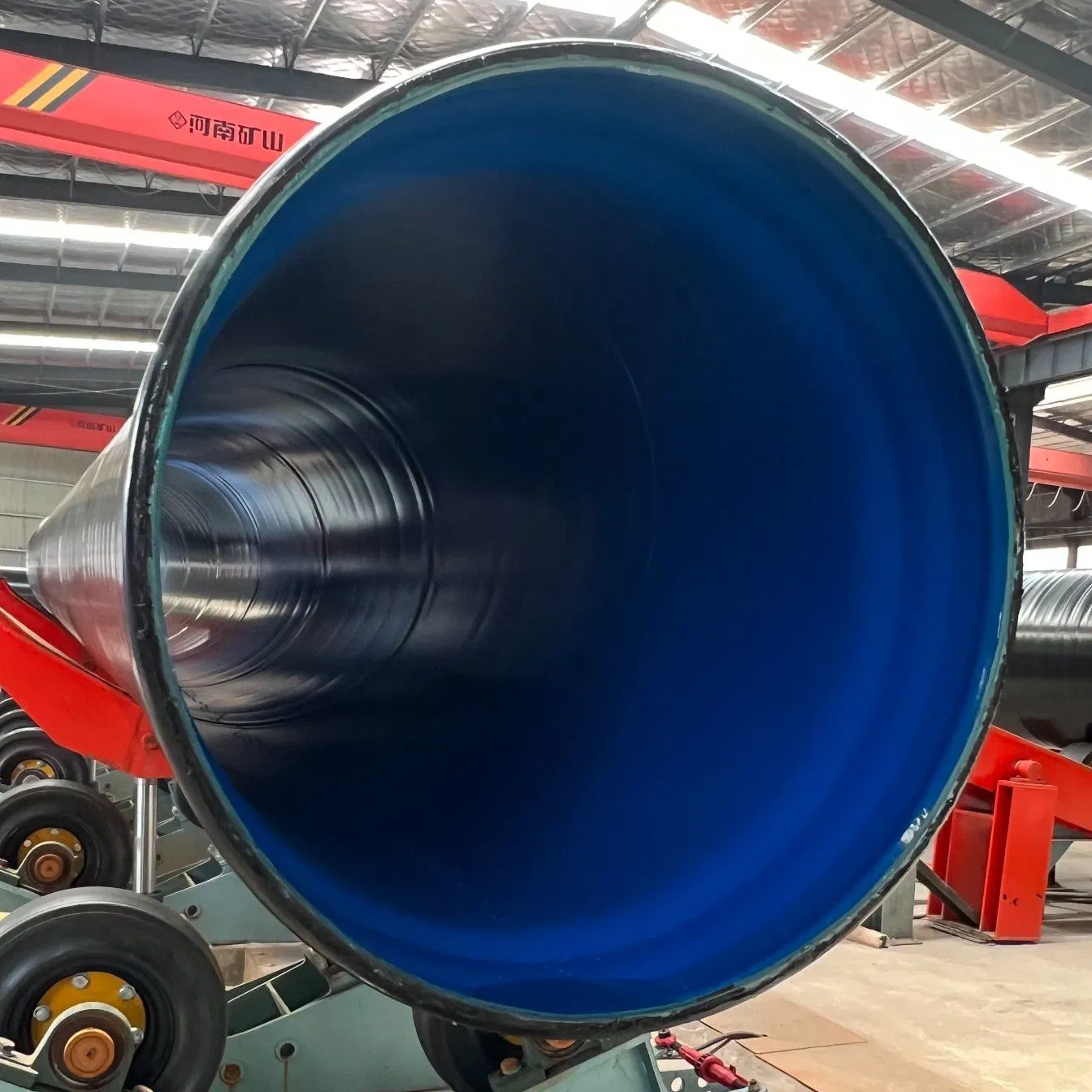

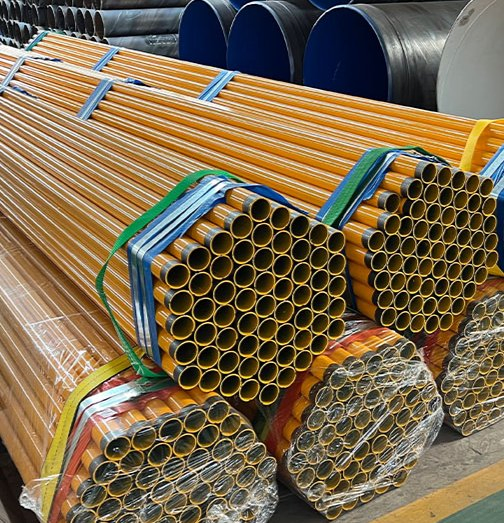

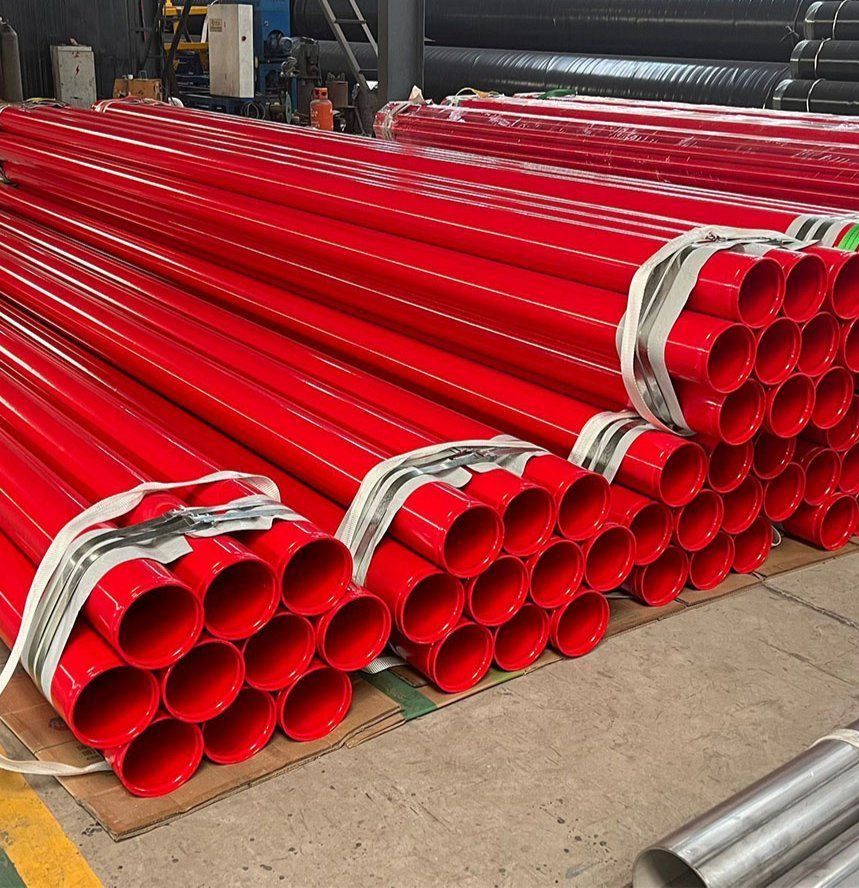

Specialized Applications: For natural gas, multi-layer systems enhance safety and durability. Fusion-bonded epoxy (FBE) provides strong adhesion and resistance to cathodic stripping. For fire protection, red epoxy-coated pipes provide long-term reliability with food-grade internal coatings that prevent rusting and ensure unobstructed water flow.
| Coating Materials | Epoxy resin (EP) or Polyethylene (PE) |
| Coating Thickness | EP: 100-400 μm; PE: 400-1000 μm |
| Product Specifications | DN15 to DN1200 and above |
| Operating Temperature | -30°C to 120°C |
| Working Pressure | 0.1 MPa to 2.5 MPa |
| Connection Methods | Threaded (DN15-100), Grooved (DN65-400), Flange (Large Diameter) |
| Design Life | Over 50 years under standard conditions |
