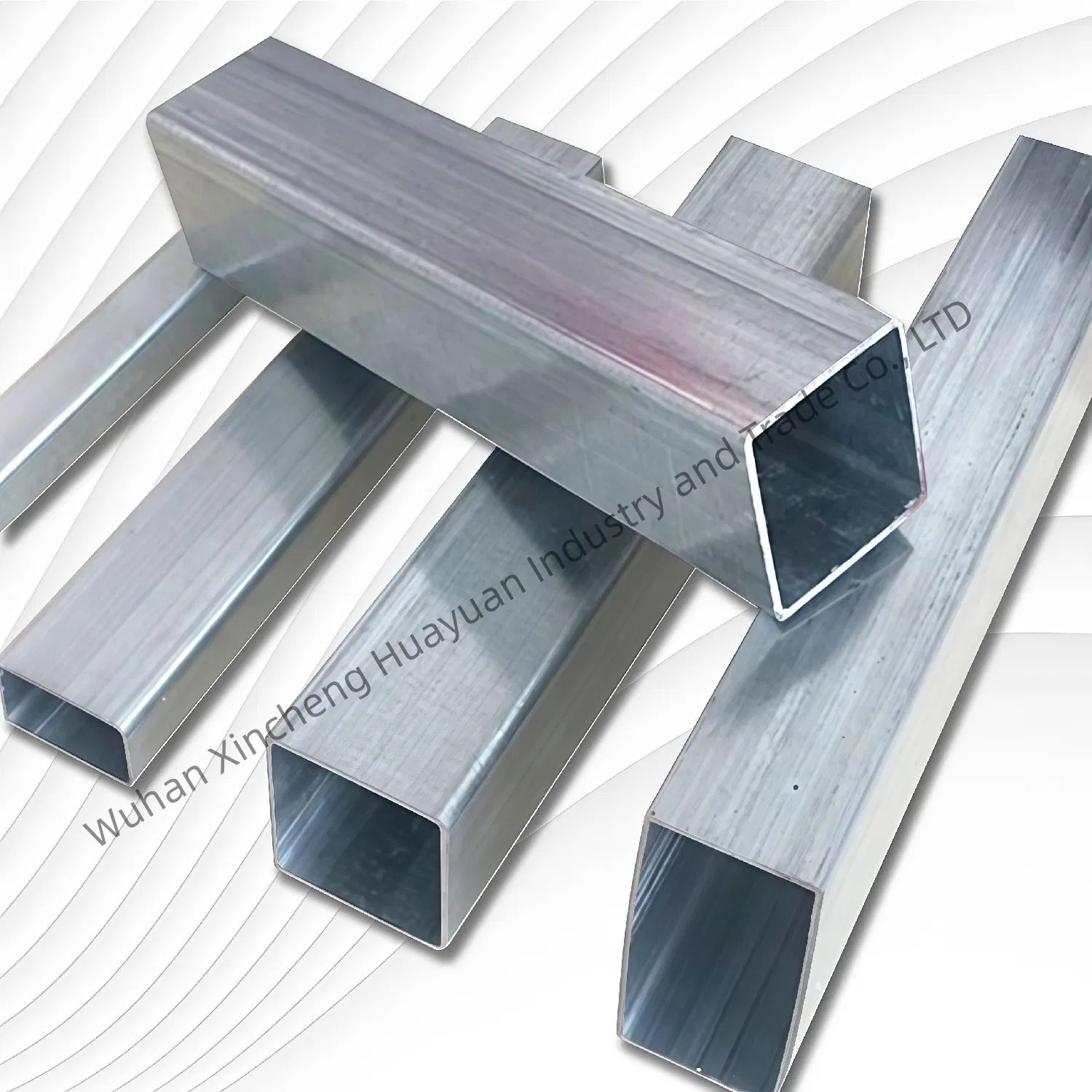

En 10219 S235jrh Galvanized Steel Tube Shs for Mechanical Engineering Projects
En 10219 S235jrh Galvanized Steel Tube Shs for Mechanical Engineering Projects
En 10219 S235jrh Galvanized Steel Tube Shs for Mechanical Engineering Projects
En 10219 S235jrh Galvanized Steel Tube Shs for Mechanical Engineering Projects
En 10219 S235jrh Galvanized Steel Tube Shs for Mechanical Engineering Projects
1 / 5
En 10219 S235jrh Galvanized Steel Tube Shs for Mechanical Engineering Projects
En 10219 S235jrh Galvanized Steel Tube Shs for Mechanical Engineering Projects
En 10219 S235jrh Galvanized Steel Tube Shs for Mechanical Engineering Projects
En 10219 S235jrh Galvanized Steel Tube Shs for Mechanical Engineering Projects
En 10219 S235jrh Galvanized Steel Tube Shs for Mechanical Engineering Projects

En 10219 S235jrh Galvanized Steel Tube Shs for Mechanical Engineering Projects

Customization: Available
After-sales Service: Have
Warranty: Have
Send Inquiry

Product Description

📋 Basic Information
Model NO.:
Galvanized Square Tube
Surface Treatment:
Galvanized
Section Shape:
Square / Rectangle
Materials:
Carbon Steel
MOQ:
1 ton
Standard:
AISI, ASTM, DIN, JIS, GB, SUS, EN, etc.
Origin:
China
HS Code:
7306610000
🏗️ Product Description
Galvanized square pipe is a hollow steel tube with a square cross-section. It is manufactured by cold-forming and high-frequency welding of carbon structural steel or low-alloy structural steel strips, followed by a hot-dip galvanizing process. The zinc coating provides exceptional resistance to atmospheric and chemical corrosion, combined with excellent strength and impact resistance. With an attractive appearance and long service life, it is widely used in building structures, curtain wall supports, machinery equipment, outdoor guardrails, and furniture.
Key Features: High corrosion resistance, superior structural strength, versatile applications, and durable zinc finish.
⚙️ Production Process
1. Pipe Making (Welding)
Uncoiling & Leveling: The steel strip is uncoiled and flattened. Forming: The flat strip is progressively cold-formed into a square shape through a series of rolls. Welding: The seam is welded using high-frequency induction welding. Sizing & Cutting: The pipe is calibrated to final dimensions and cut.
2. Galvanizing
Chemical Pre-treatment: Pipe undergoes degreasing, pickling, rinsing, and fluxing. Hot-Dip Galvanizing: Immersed in molten zinc at approx 450°C. Cooling & Post-treatment: Water-cooled to solidify coating and final inspection.
📊 Technical Specifications
Product NameHot-dip galvanized square and rectangular tubes
StandardsEN10219, EN10210, GB/T 6728, JIS G3466, ASTM A500, A36
MaterialLow carbon steel
Steel GradeQ195 (S195), Q235 (S235/A53 Grade B), Q355 (S355JR/A500)
Thickness1.2mm - 20mm or customized
Outer DiameterSquare: 20*20mm - 500*500mm | Rectangular: 20*40mm - 300*500mm
Length2000mm - 12000mm or as per request
Surface TreatmentBlack painting, anti-rust oil, hot/cold galvanized, 3PE, etc.

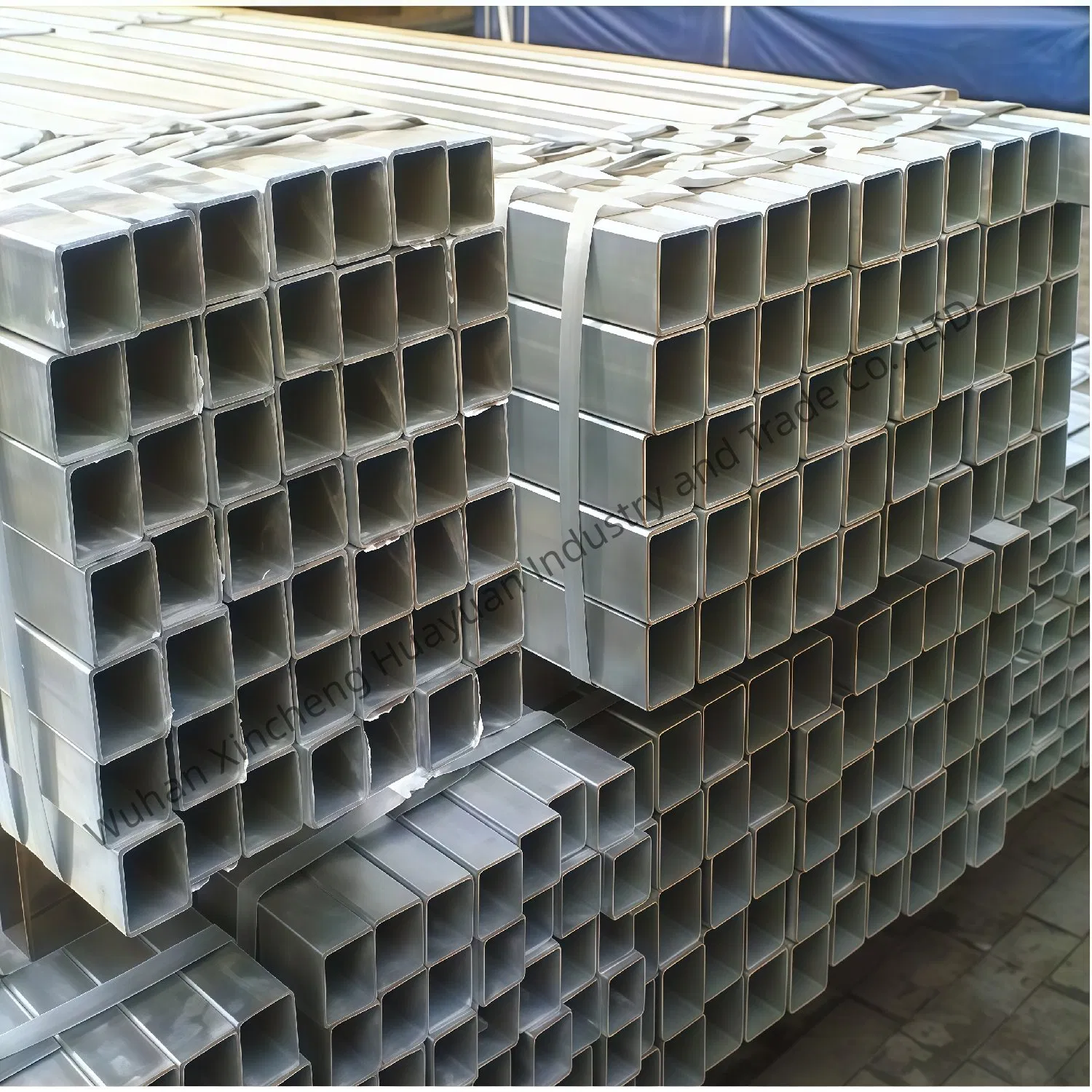

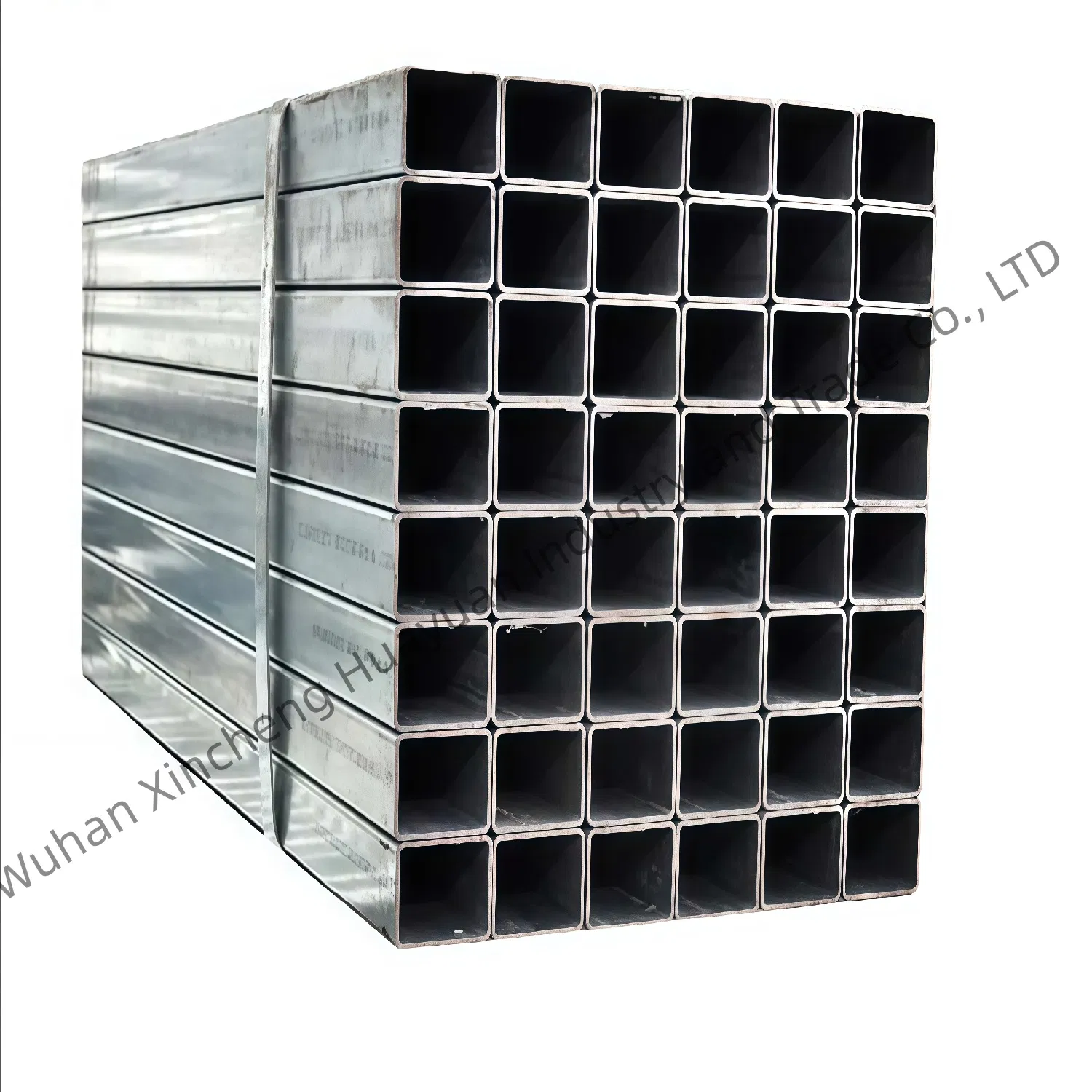

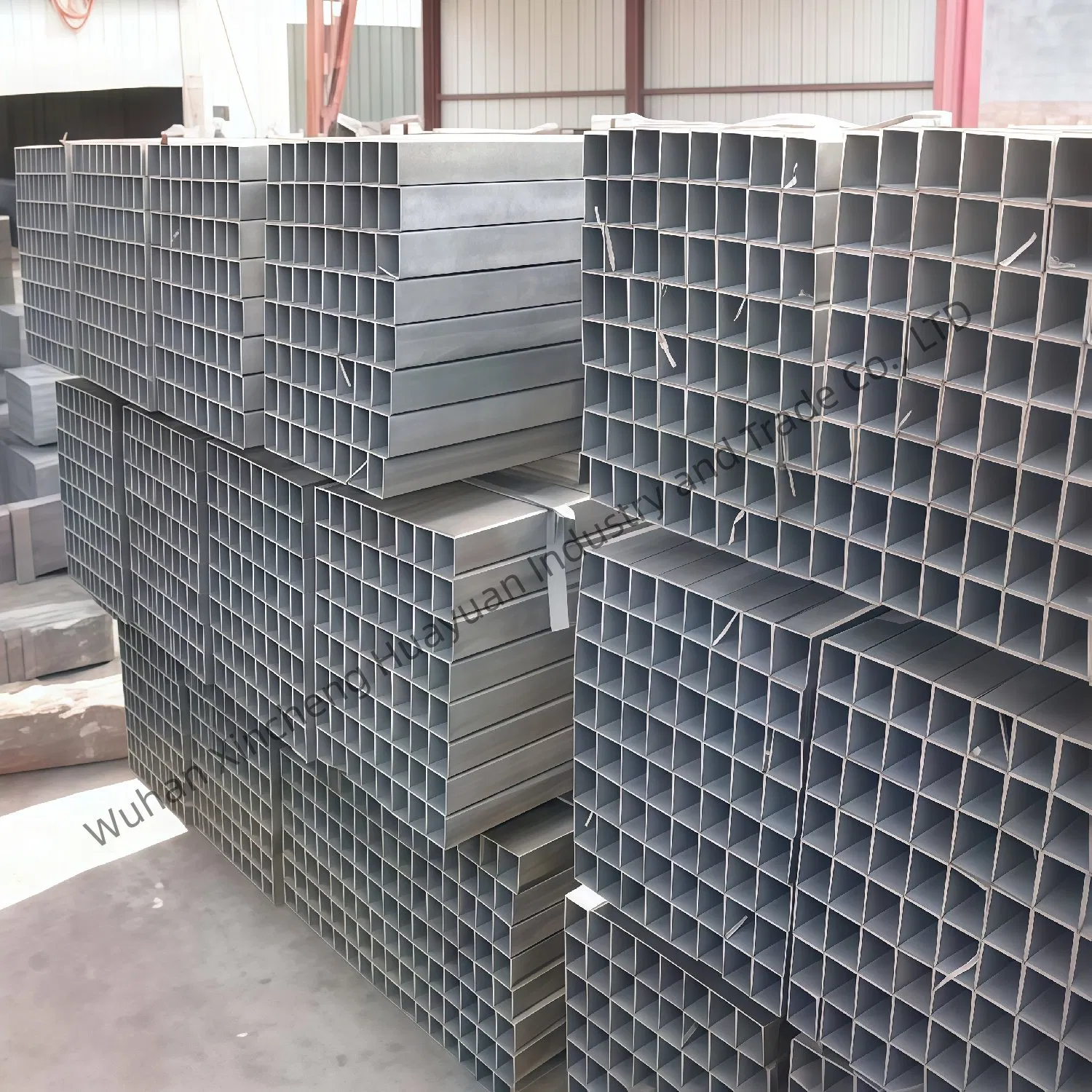

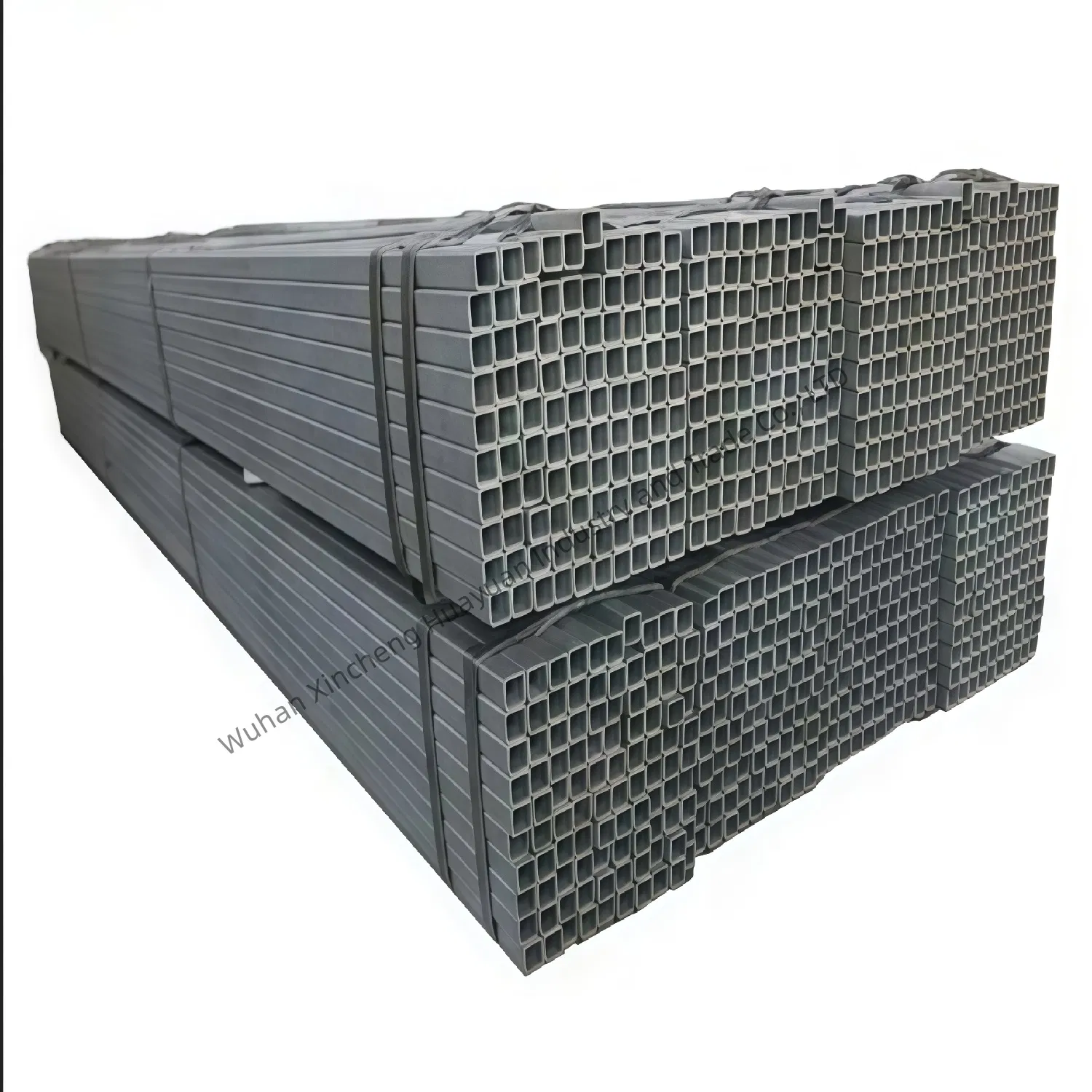

📷 Product & Factory Showcase
