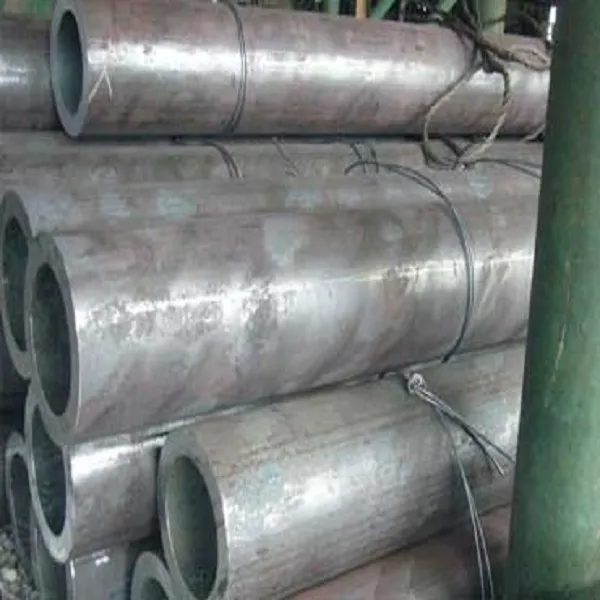

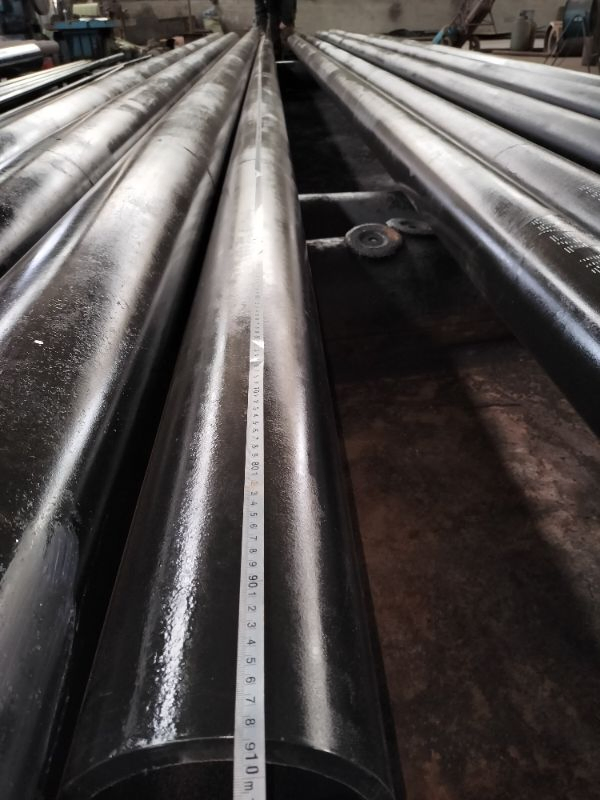

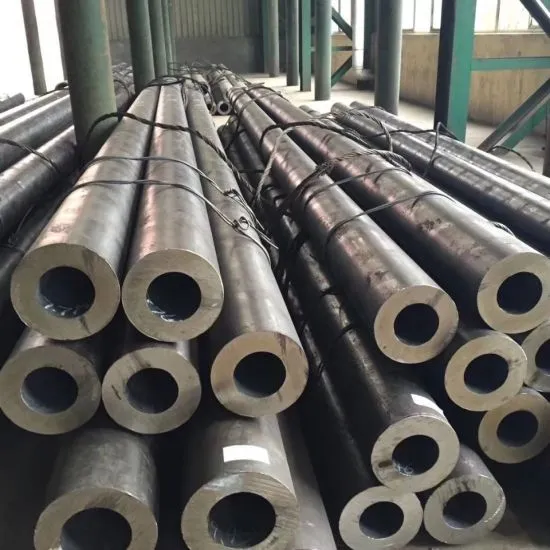

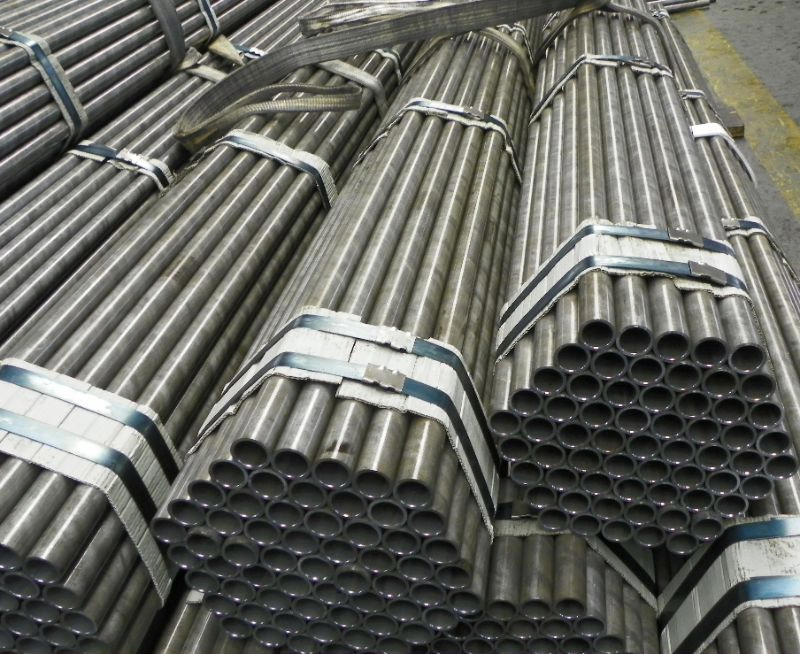

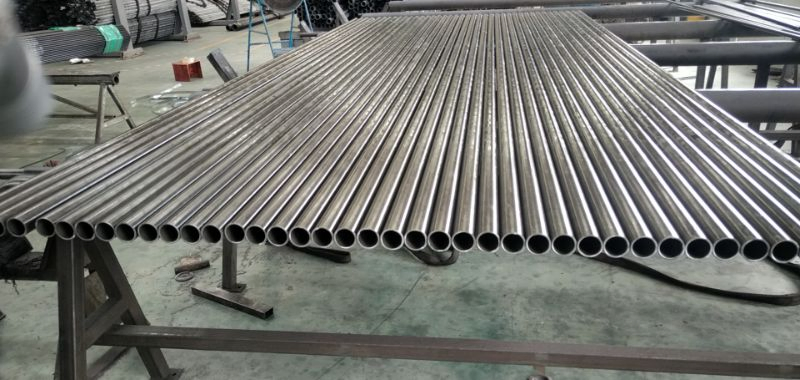

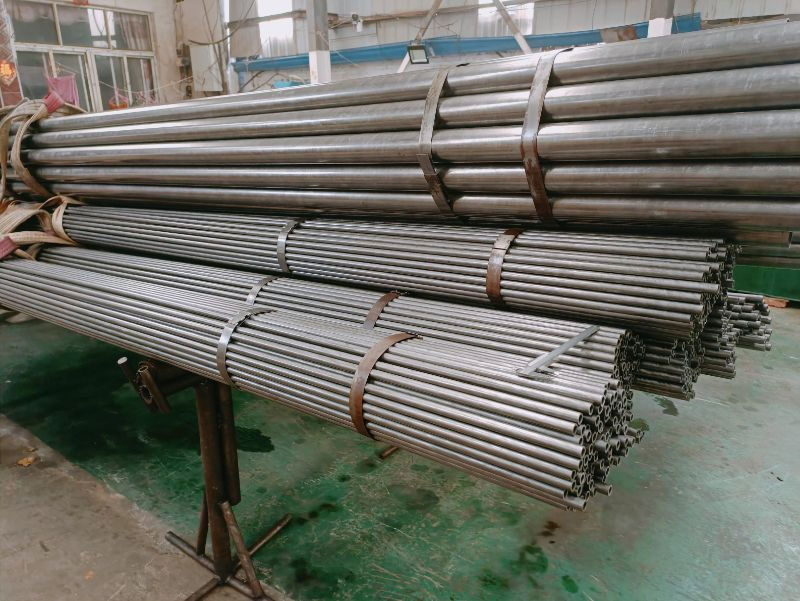

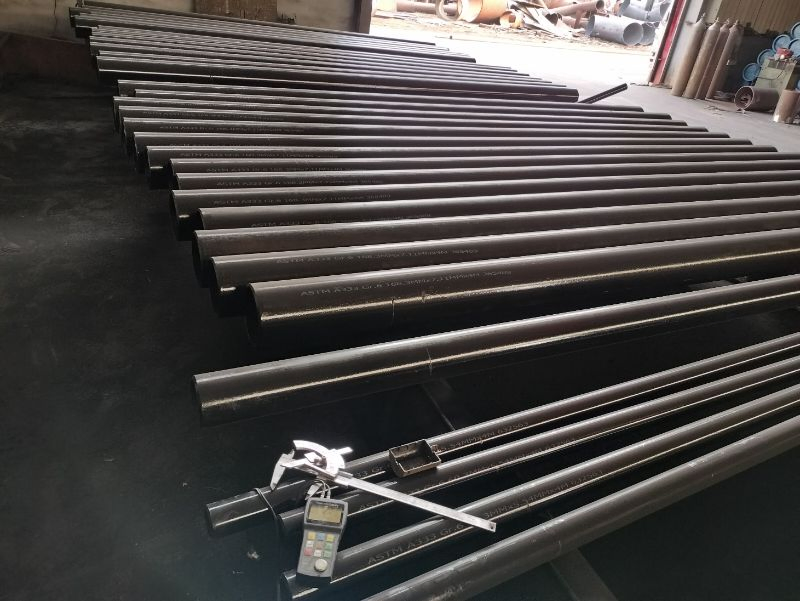

ASTM A519 AISI4140 Alloy Steel Tube Seamless For Mechanical
Production Introduction
ASTM A519 covers several grades of carbon and alloy steel seamless mechanical tubing. It is manufactured by hot working and then cold finishing the steel into round, square, rectangle or special shapes. AISI 4140 is a steel formula designation indicating medium carbon content with strengthening alloys that include chromium, manganese, silicon, molybdenum, sulfur and phosphorus.
Mechanical tubing in sizes up to and including 12 - 3/4 in. (323.8 mm) outside diameter for round tubes with wall thicknesses as required. The tubes shall be furnished in the following shapes, as specified by the purchaser: round, square, rectangular, and special sections.
Typical Tensile Properties, Hardness and Thermal Condition of A519 4140
| Condition | HR | SR | A | N |
|---|---|---|---|---|
| Ultimate Strength, ksi[Mpa] | 120[855] | 120[855] | 80[552] | 120[855] |
| Yield Strength, ksi[Mpa] | 90[621] | 100[689] | 60[414] | 90[621] |
| Elongation in 2 in. or 50 mm,% | 15 | 10 | 25 | 20 |
| Rockwell Hardness B Scale | 100 | 100 | 85 | 100 |
HR = Hot Rolled, SR = Stress Relieved, A = Annealed, N = Normalized
Ordering Information
Condition: The purchaser shall specify a sizing method and if required, a thermal treatment.
Sizing Methods: HF-Hot Finished, CW-Cold worked, RT-Rough Turned, G- Ground.
Thermal Treatments: A-Annealed, N- Normalized, QT-Quenched and Tempered, SR-Stress Relieved or Finished Anneal.
Profile
Focus on manufacturing and distributing pipeline products including piping, fitting, flange, valve and fastener in stainless, carbon, alloy and duplex steel. With a factory to manufacture seamless stainless steel pipe from DN6 to DN600 and distribute seamless steel pipe and fitting from top brand manufacturers.

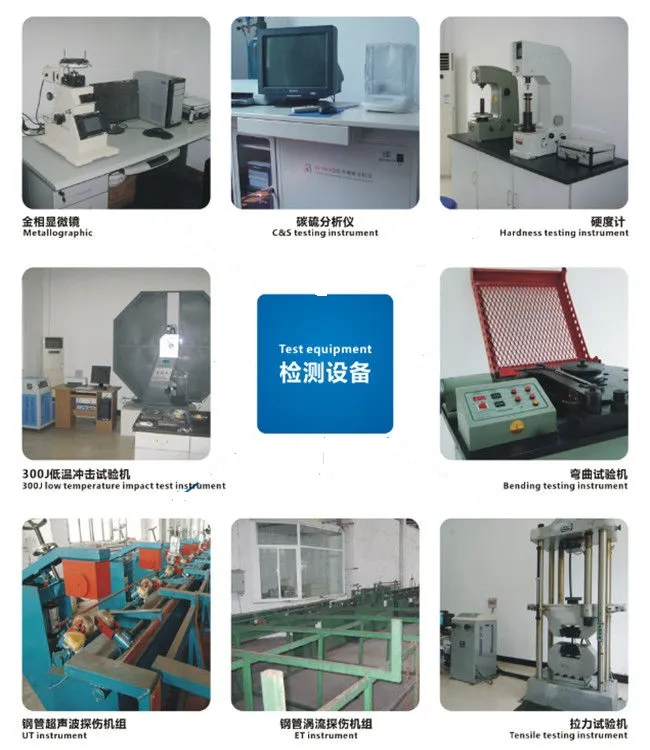

All of products are strictly compliance with standard, 100% inspection passed including visual, dimension and PMI test before shipment. Both our sales and logistic teams are over 10 years of experiences. After-sales service with high efficiency: if any products are short quantity/weight or damaged caused by manufacturing, design or transportation can be compensated.
