Dactron Pipe
1 / 5
| Feature | Detail | Description |
|---|---|---|
| Size Range | OD: 1/8” - 24” (5.0mm-716mm) | Various diameters available |
| Wall Thickness | 0.3mm-26mm | SCH20, SCH40, STD, XS, SCH80, SCH160, XXS |
| Material Grades | ASTM 106 Gr.B, API 5L Gr.B, ASTM A 53 Gr.B | High-quality carbon steel |

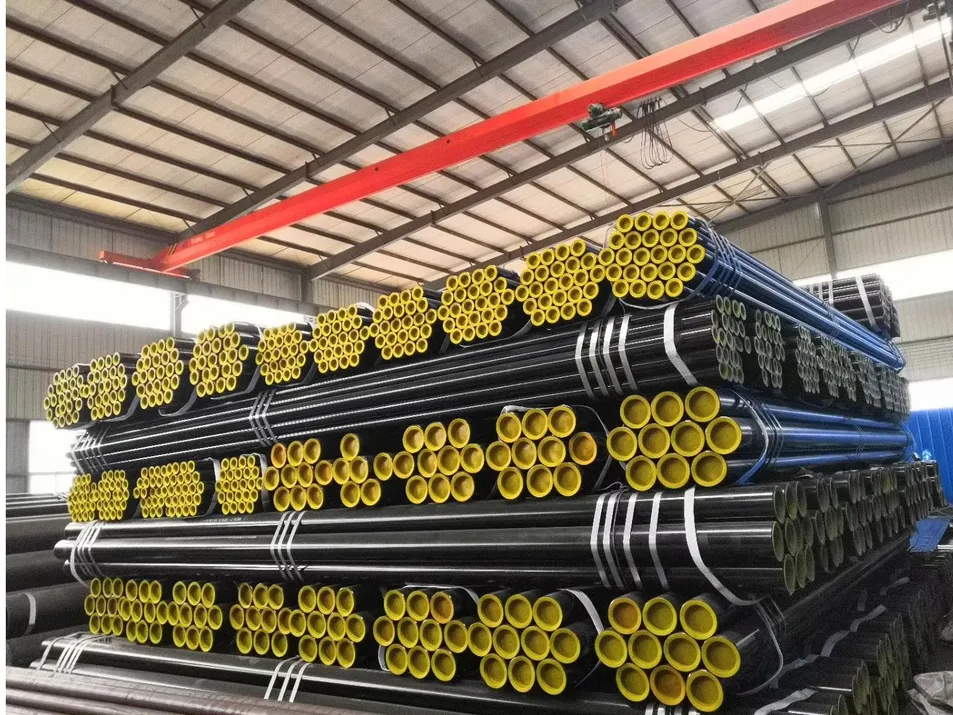

| Surface Treatment | Bared, Black Painted, Galvanized, Oiled | Anti-corrosion coatings available (PE, 3PE, FBE) |

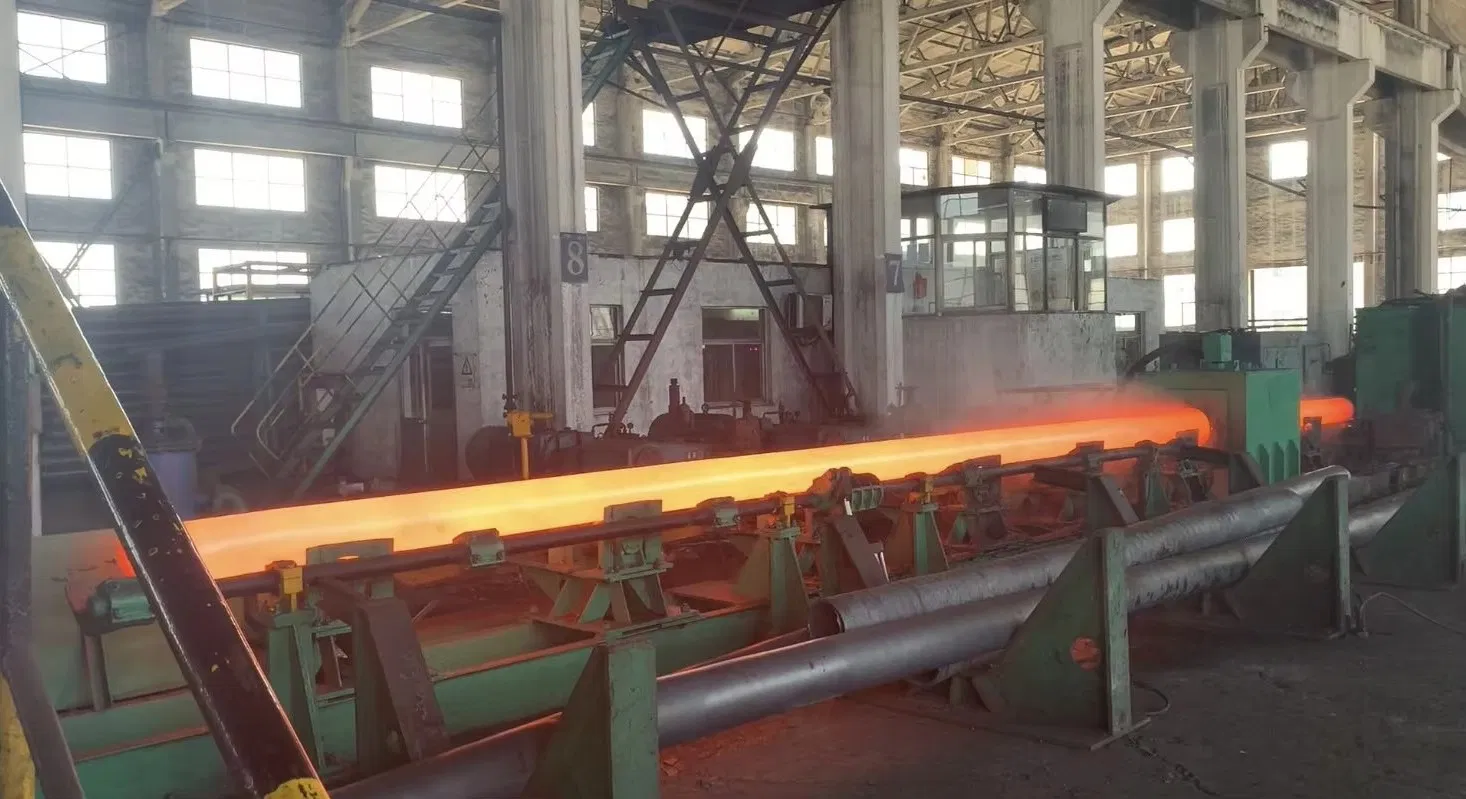

| Technique | ERW, EFW, DSAW, Cold Drawn | Multiple production methods |
| Nominal Size (Inch) | OD (mm) | SCH40 WT (mm) | SCH80 WT (mm) | SCH160 WT (mm) |
|---|---|---|---|---|
| 1/2" | 21.3 | 2.77 | 3.73 | 4.78 |
| 3/4" | 26.7 | 2.87 | 3.91 | 5.56 |
| 1" | 33.4 | 3.38 | 4.55 | 6.35 |
| 2" | 60.3 | 3.91 | 5.54 | 8.74 |
| 4" | 114.3 | 6.02 | 8.56 | 13.49 |
| 8" | 219.1 | 8.18 | 12.7 | 23.01 |
1. Industrial Pipelines: Fluid transportation for water, oil, gas, and steam.
2. Machinery: Automobile drive shafts, bicycle frames, and hydraulic cylinder barrels.
3. Construction: Supporting columns for bridges and high-rise buildings.
4. Chemical & Petroleum: Oil well pipes and corrosive medium transportation.
