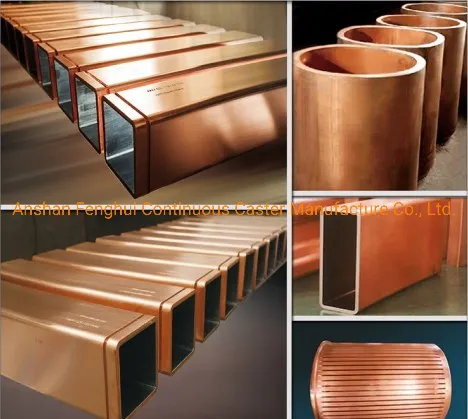

Copper Mould Tube
To provide mould tubes with optimal physical and mechanical properties to customers' specifications, mould tube products are supplied in the following materials:
These materials offer different levels of hardness and thermal conductivities, ensuring high heat resistance and performance for specific industrial applications.

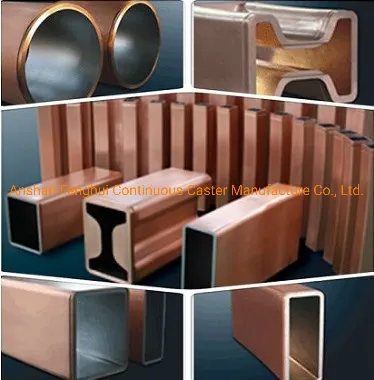

| Item | Unit | Size | Thickness | Length | Radius |
|---|---|---|---|---|---|

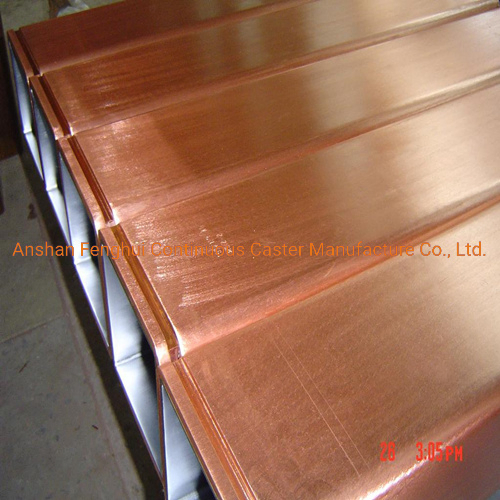

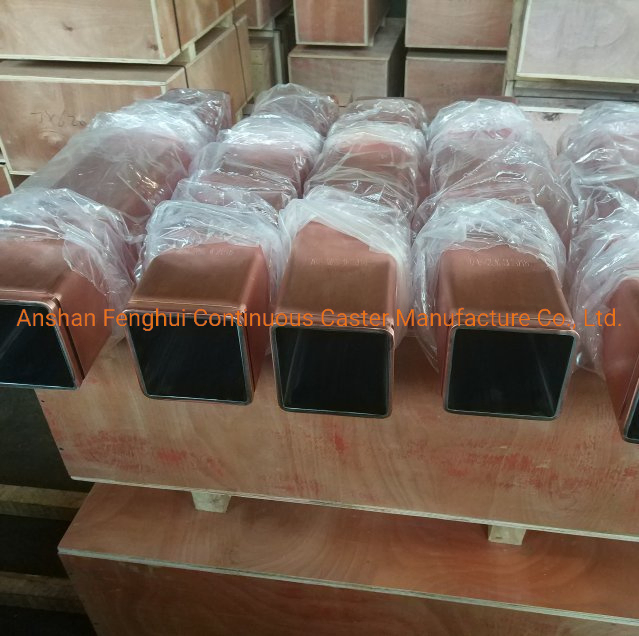

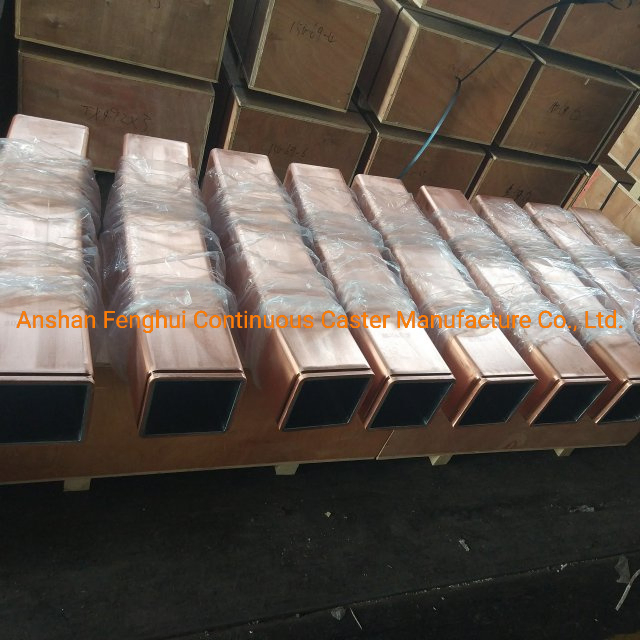

| Square Copper Mould Tubes | mm | 50*50-500*500 | 6-50 | 700-1100 | 4000-17000 or Straight |

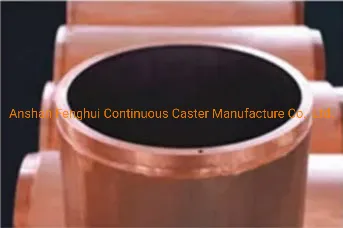

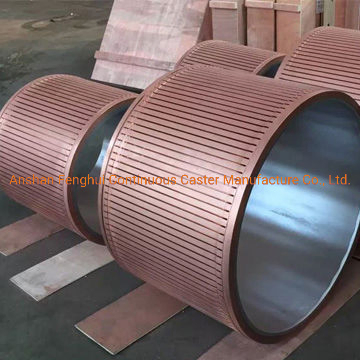

| Round Copper Mould Tubes | mm | φ110-1200 | 10-50 | 700-900 | 5000-17000 or Straight |
| Rectangle Copper Mould Tubes | mm | (100-500)*650 | 6-50 | 700-1100 | 4000-17000 or Straight |
| Beam Blank Copper Mould Tubes | mm | Customized | 12-50 | 780-1016 | 6000-17000 |
| Material Properties | Cu-DHP | Cu-Ag | Cu-Cr-Zr |
|---|---|---|---|
| Melting point | 1083ºC | 1083ºC | 1078ºC |
| Thermal Conductivity | 340w(m.K) | 377w(m.K) | 325w(m.K) |
| Hardness at 20ºC | Min.85HB | Min.90HB | Min.120HB |
| Recrystallization | 330ºC | 370ºC | 700ºC |
