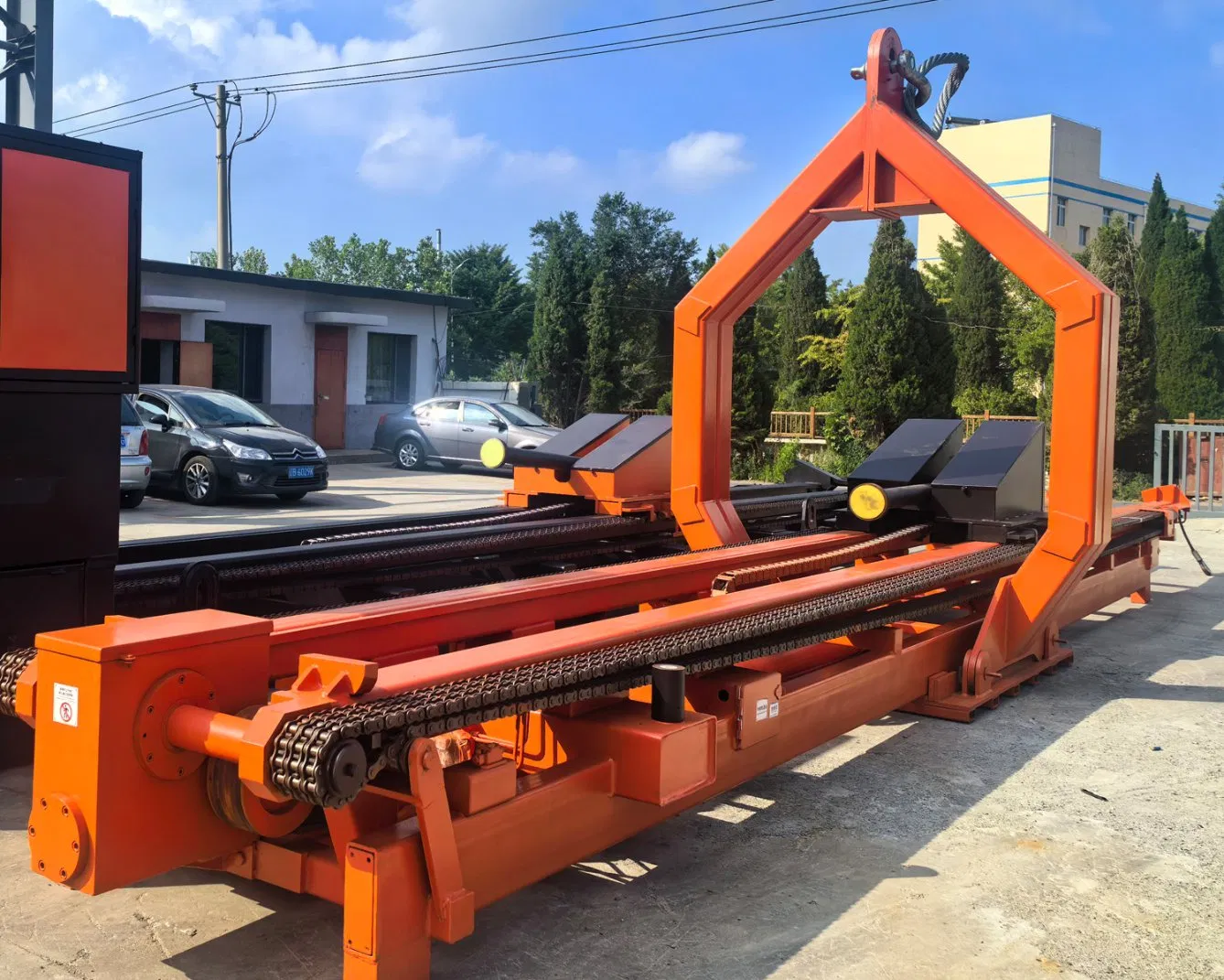

Special Tools for Heat Exchanger Tube Bundle Extractor Brand New 50 Ton Weight Capacity with All Accessories

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

SD200-9B

Certification

CE, ISO

Application

Heater

Principle

Regenerative Heat Exchanger

Style

Steel Type

Material

Stainless Steel

Transport Package

Pallet

Specification

11000 x 2200 x 1450mm

Trademark

Origin

China

HS Code

8428909090

Capacity

500 sets/Year

Product Description

Heat exchanger tube bundle extractor available from 15 ton to 130 ton, bundle length 6m-15m (OEM accepted)
Power supply: Electric and Diesel options available
ISO9001:2015 approved quality standards
Safe, simple, efficient and reliable operation
Auto balancing system for load and no load conditions
Over 30 years in design, research and manufacturing of tube bundle extractors
Perfect equipment for professional bundle extracting and inserting
Strong market presence with exports to more than 10 oversea countries

Technical Specifications

Model No.	Max. Pulling Force (ton)	Bundle Weight Capacity (ton)	Max. Bundle Diameter (mm)	Max. Bundle Length (mm)	Dimension (LxWxH mm)
SD100-6B	15	20	1000	6000	9600 x 1200 x 1200
SD120-6B	20	20	1200	6000	9600 x 1400 x 1200
SD140-6B	30	30	1400	6000	9600 x 1600 x 1230
SD140-9B	35	35	1400	9000	12600 x 1600 x 1230
SD160-10B	45	45	1600	10000	13600 x 1800 x 1300
SD180-6B	40	40	1800	6000	9600 x 2000 x 1300
SD180-9B	45	45	1800	9000	12600 x 2000 x 1300
SD180-12B	45	45	1800	12000	15600 x 2000 x 1300
SD200-9B	50	50	2000	9000	12600 x 2200 x 1350
SD200-12B	55	55	2000	12000	15600 x 2200 x 1350
SD220-9B	60	60	2200	9000	12600 x 2400 x 1450
SD220-12B	65	65	2200	12000	15600 x 2400 x 1450
SD240-9B	70	70	2400	9000	12600 x 2600 x 1550
SD240-12B	75	75	2400	12000	15600 x 2600 x 1550
SD260-9B	80	80	2600	9000	12600 x 2800 x 1750
SD260-12B	85	85	2600	12000	15600 x 2800 x 1750
SD260-15B	90	90	2600	15000	18600 x 2800 x 1750
SD280-12B	95	95	2800	12000	15600 x 3000 x 1770
SD300-15B	120	120	3000	15000	18600 x 3200 x 1800

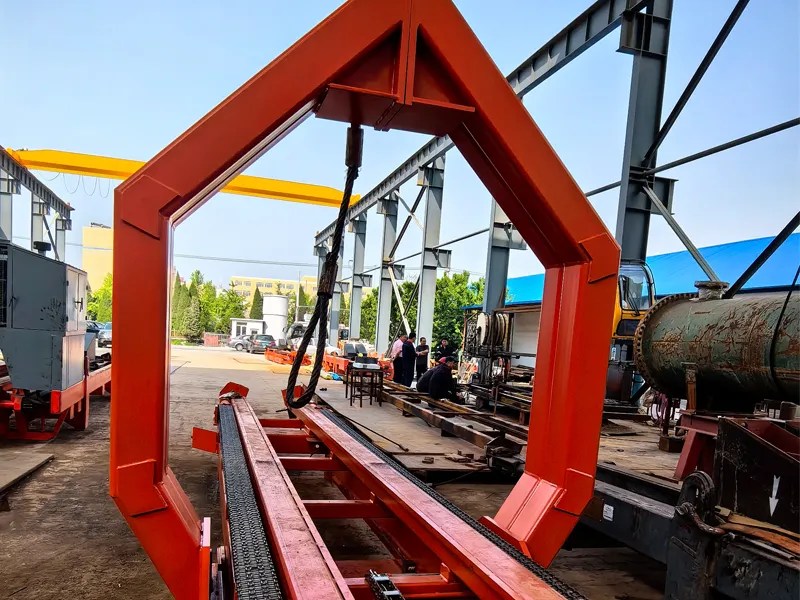

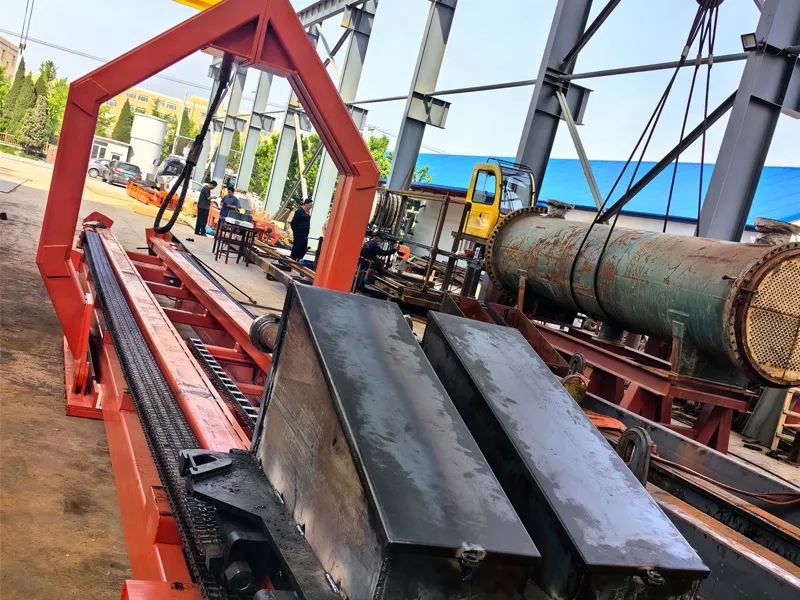

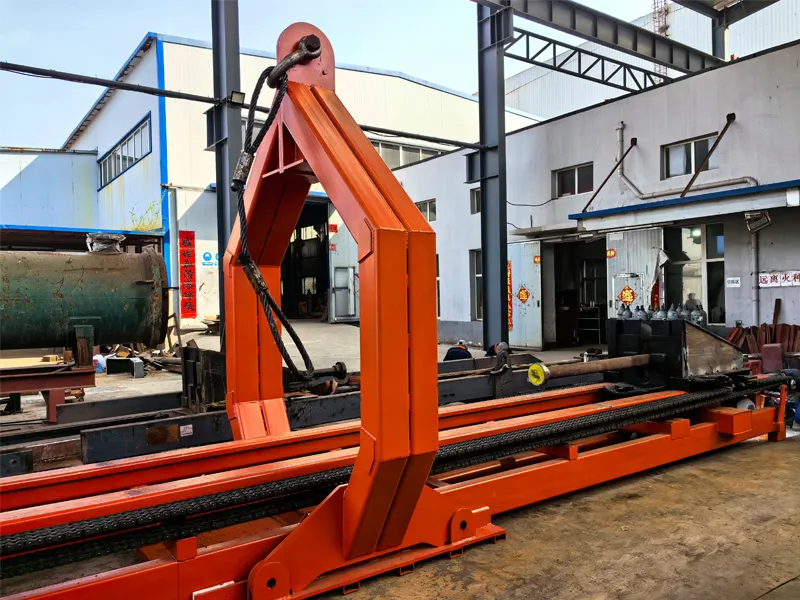

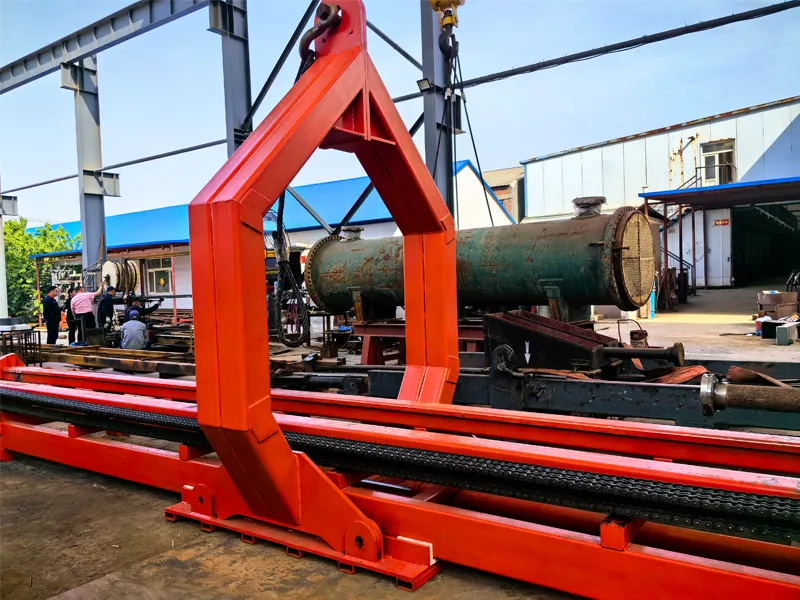

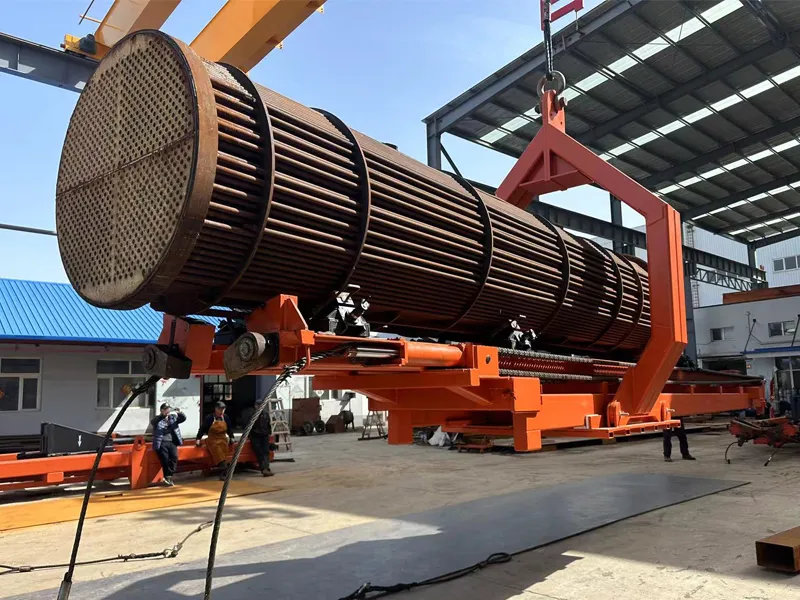

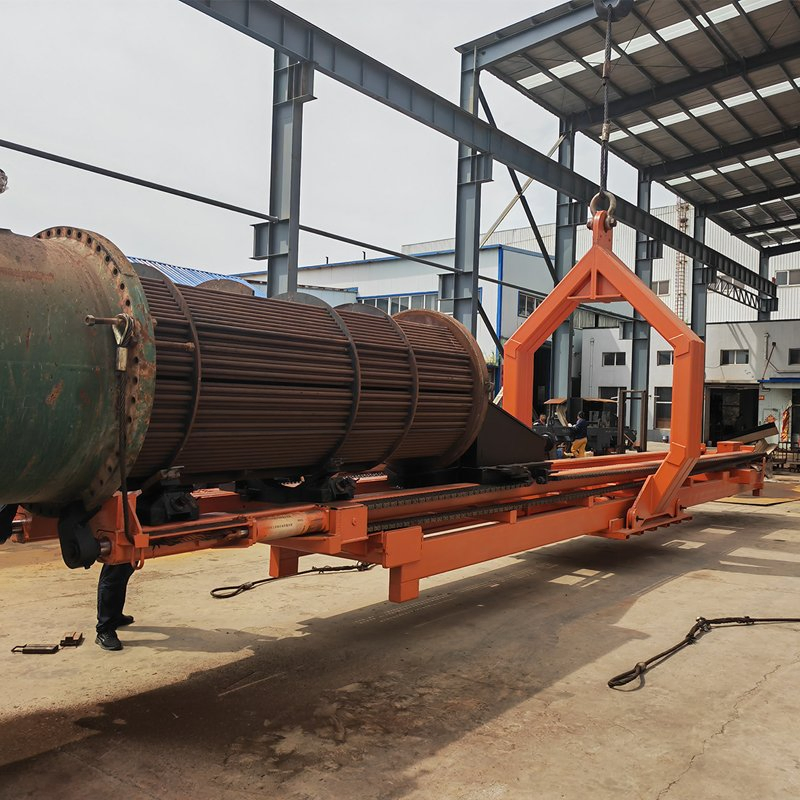

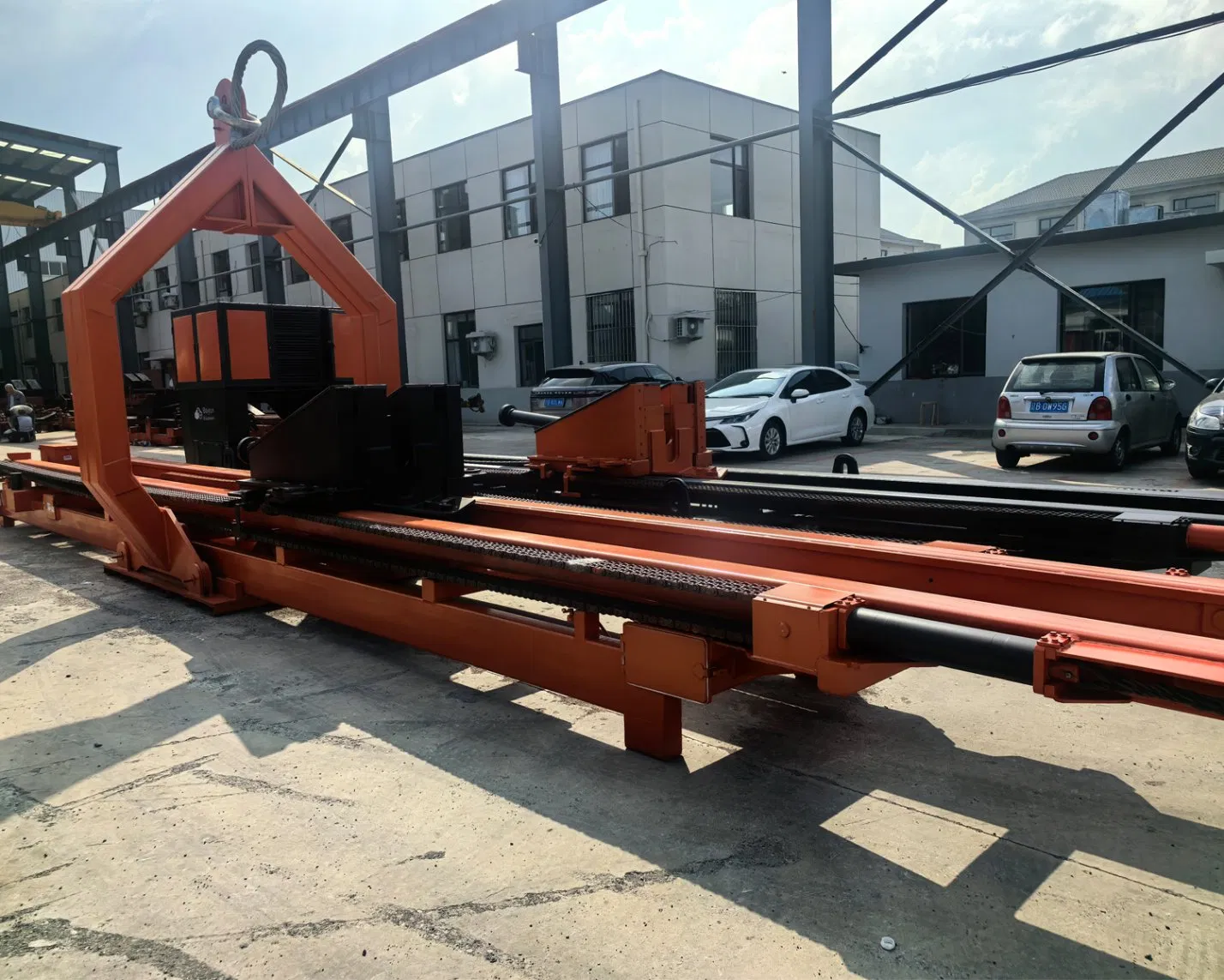

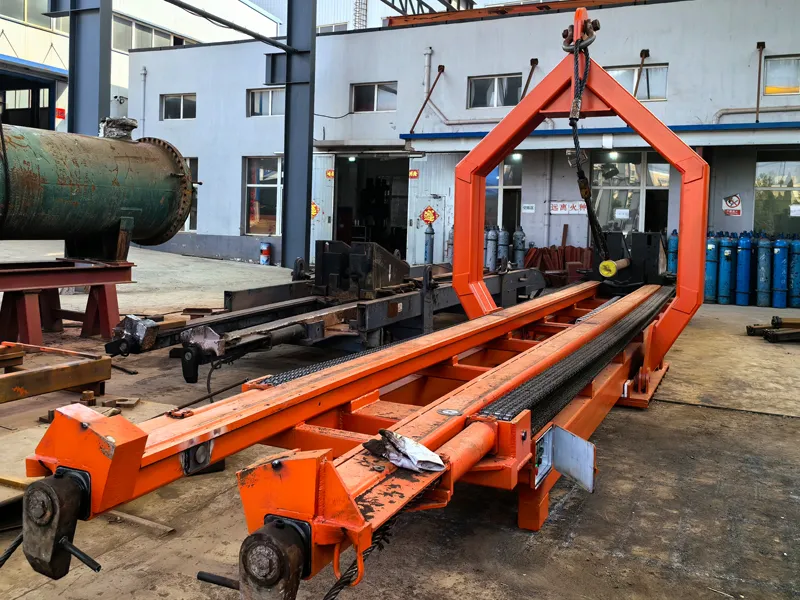

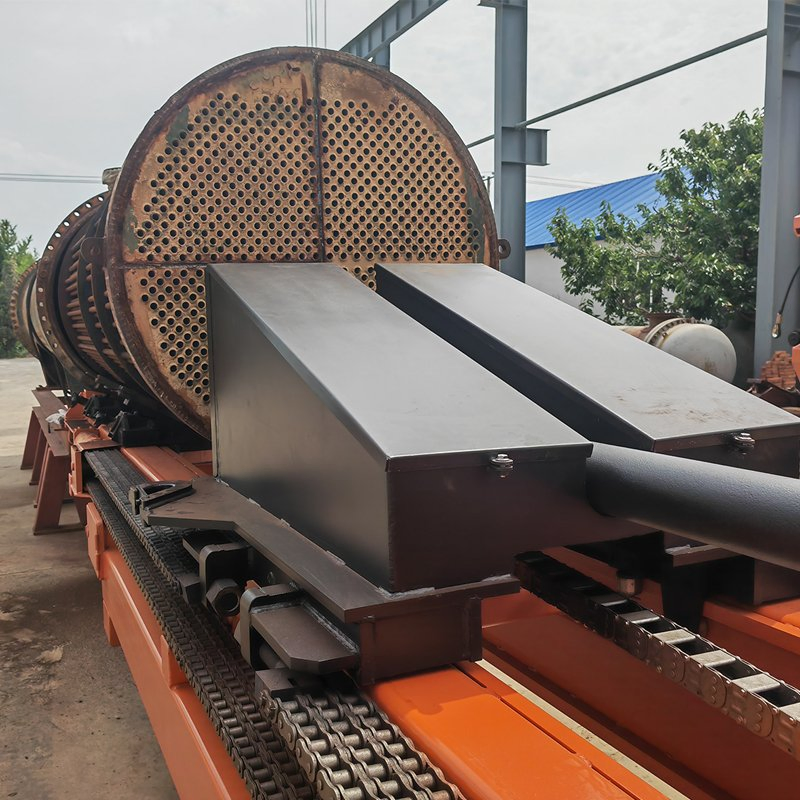

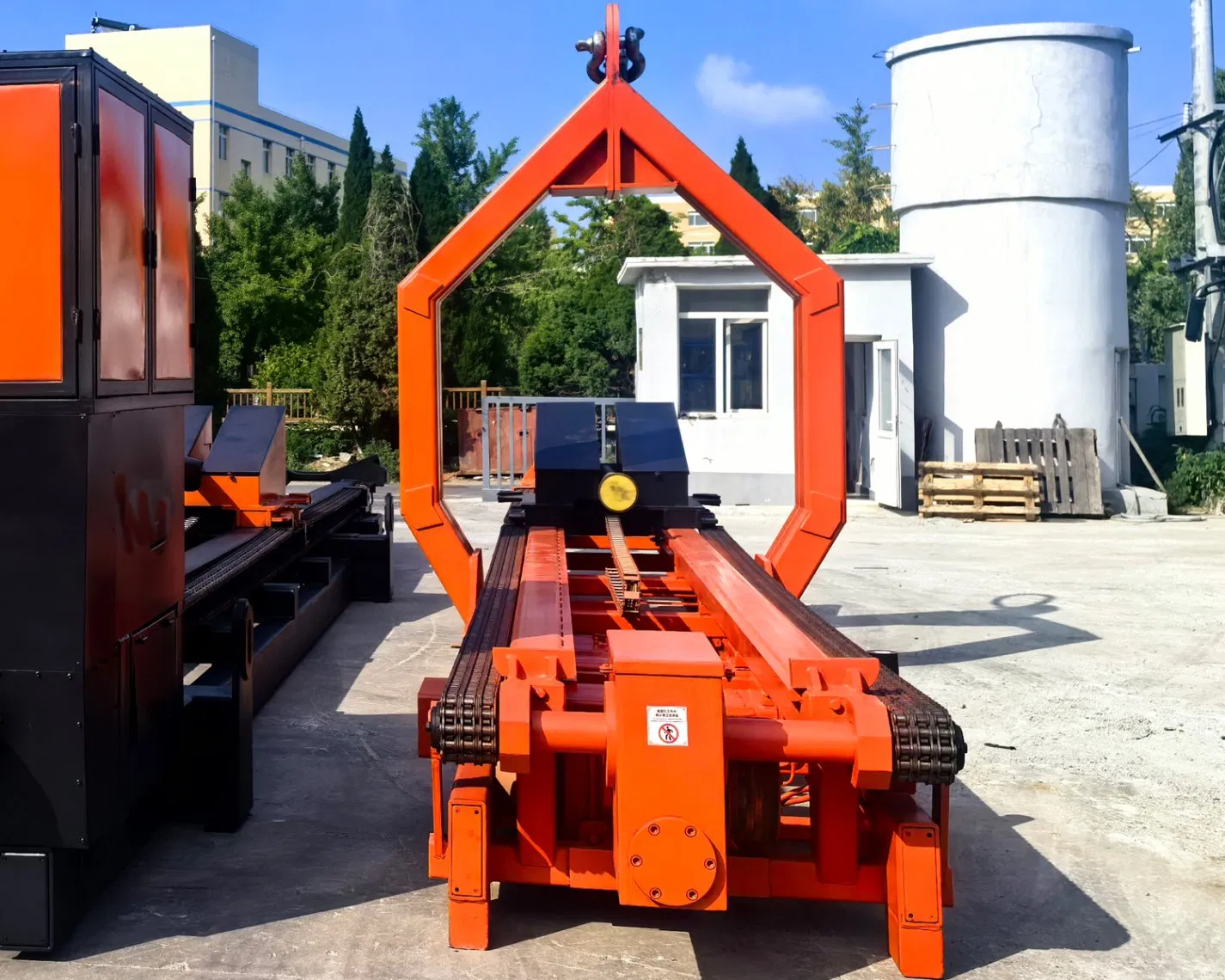

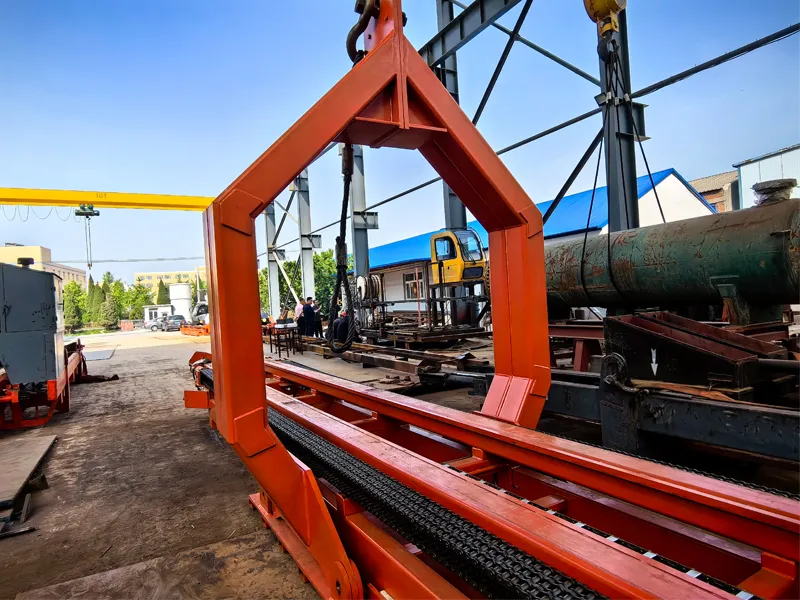

Actual Photos & On-site Display

Customer Inspection

Oversea Markets & Logistics

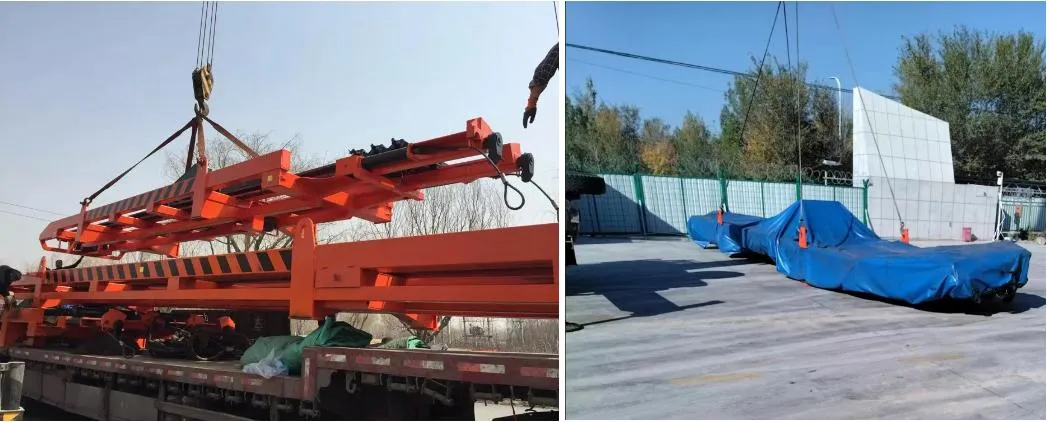

Professional Packing & Delivery

Frequently Asked Questions

Q1: What is the maximum pulling force of your bundle extractors?

Our equipment ranges from a pulling force of 15 tons up to 120 tons, depending on the specific model selected.

Q2: Can the bundle length and diameter be customized?

Yes, we accept OEM orders. While standard lengths are 6m to 15m, we can customize the dimensions to meet your specific heat exchanger requirements.

Q3: What power supply options are available for the equipment?

We offer both Electric and Diesel power supply options to suit different on-site operational environments.

Q4: How does the auto balancing system work?

The auto balancing system ensures stability during both load and no-load conditions, making the extracting and inserting process safer and more efficient.

Q5: Are your products certified for international use?

Yes, our manufacturing processes are ISO9001:2015 approved, and our equipment is designed to meet CE standards.

Q6: Do you provide support for oversea customers?

With over 30 years of experience and exports to more than 10 countries, we provide reliable equipment and professional documentation for global industrial use.
