Galvanized Carbon Steel Pipe Construction Scaffolding Pipe Weights

Still deciding? Get samples of $ !
Order Sample

Product Description

📋

Basic Information

Model NO.
CJ-3.5
Certification
CNAS
Material
Steel (Q235, Q345b, 40cr)
Type
Suspension Formwork
Product
Steel Post Shore / Prop
Adjustable Range
2.1m - 3.5m (6'6" - 11')
Loading Capacity
18,000 - 38,000 lbs
Usage
Construction Formwork Discharge
HS Code
7308400000
Package
Steel Pallet (120x120x90cm)

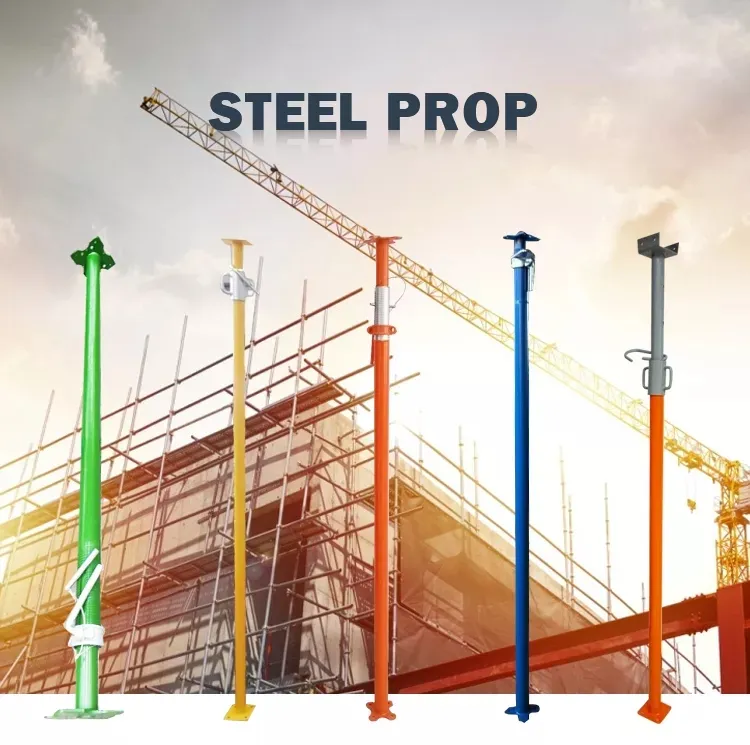

Steel Post Shore
Construction Prop
Scaffolding Pipe
📐

Product Specifications

Middle East or German Prop
Adjustable Length Outer Tube Inner Tube Wall Thickness
1400-2700mm60mm48mm1.4 - 5.5mm
1600-2700mm60mm48mm
1620-2640mm60mm48mm
2000-3500mm60mm48mm
2200-3500mm60mm48mm
3000-5500mm60mm48mm
Italian Prop
Adjustable Length Outer Tube Inner Tube Wall Thickness
1600-2900mm56mm48mm1.5 - 2.75mm
1800-3100mm56mm48mm
2000-3600mm56mm48mm
2200-4000mm56mm48mm
Spanish Prop
Adjustable Length Outer Tube Inner Tube Wall Thickness
800-1400mm48mm40mm1.5 - 2.5mm
1600-3000mm48mm40mm
2000-3500mm48mm40mm
2200-4000mm48mm40mm

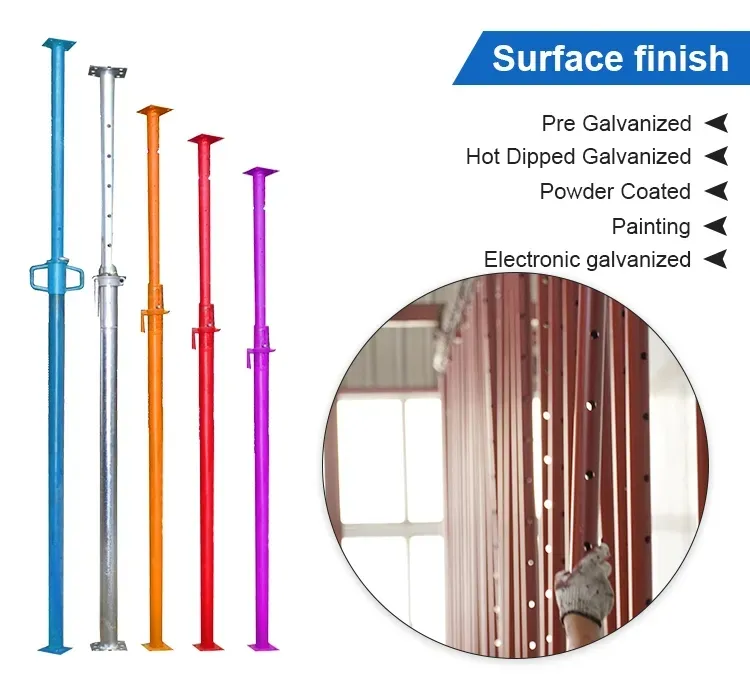

🛠️ Surface Treatment Options

● Painted
● Powder Coated
● Electro Galvanized
● Hot Dip Galvanized

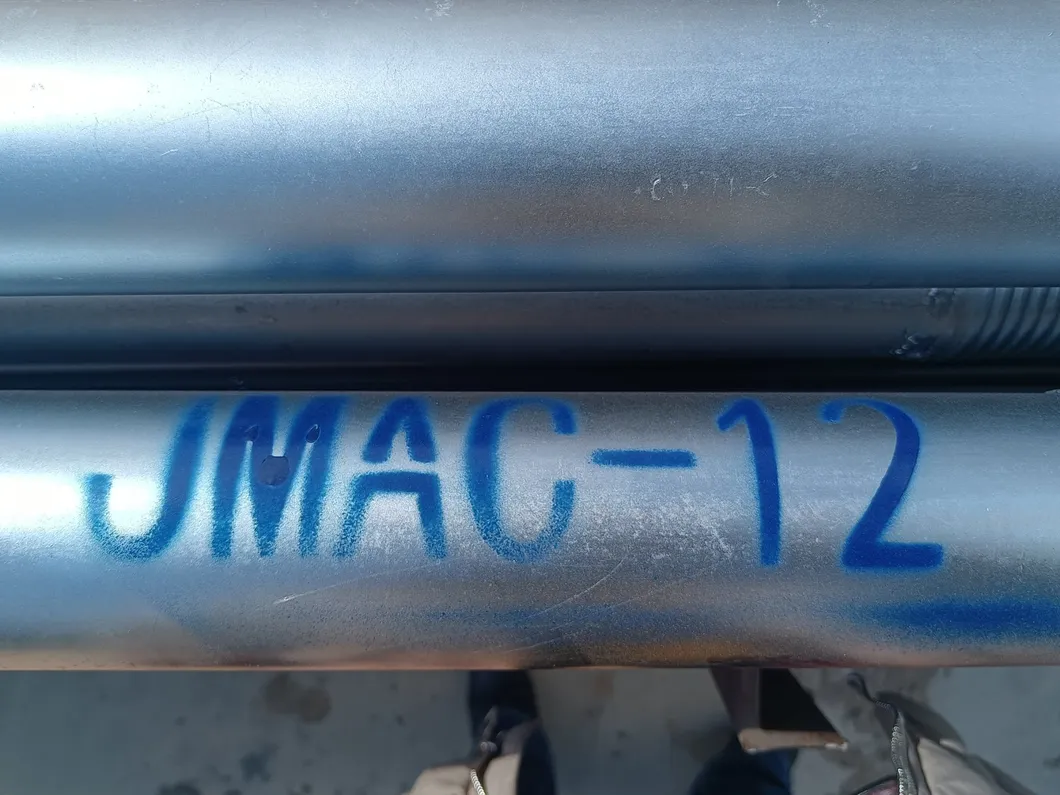

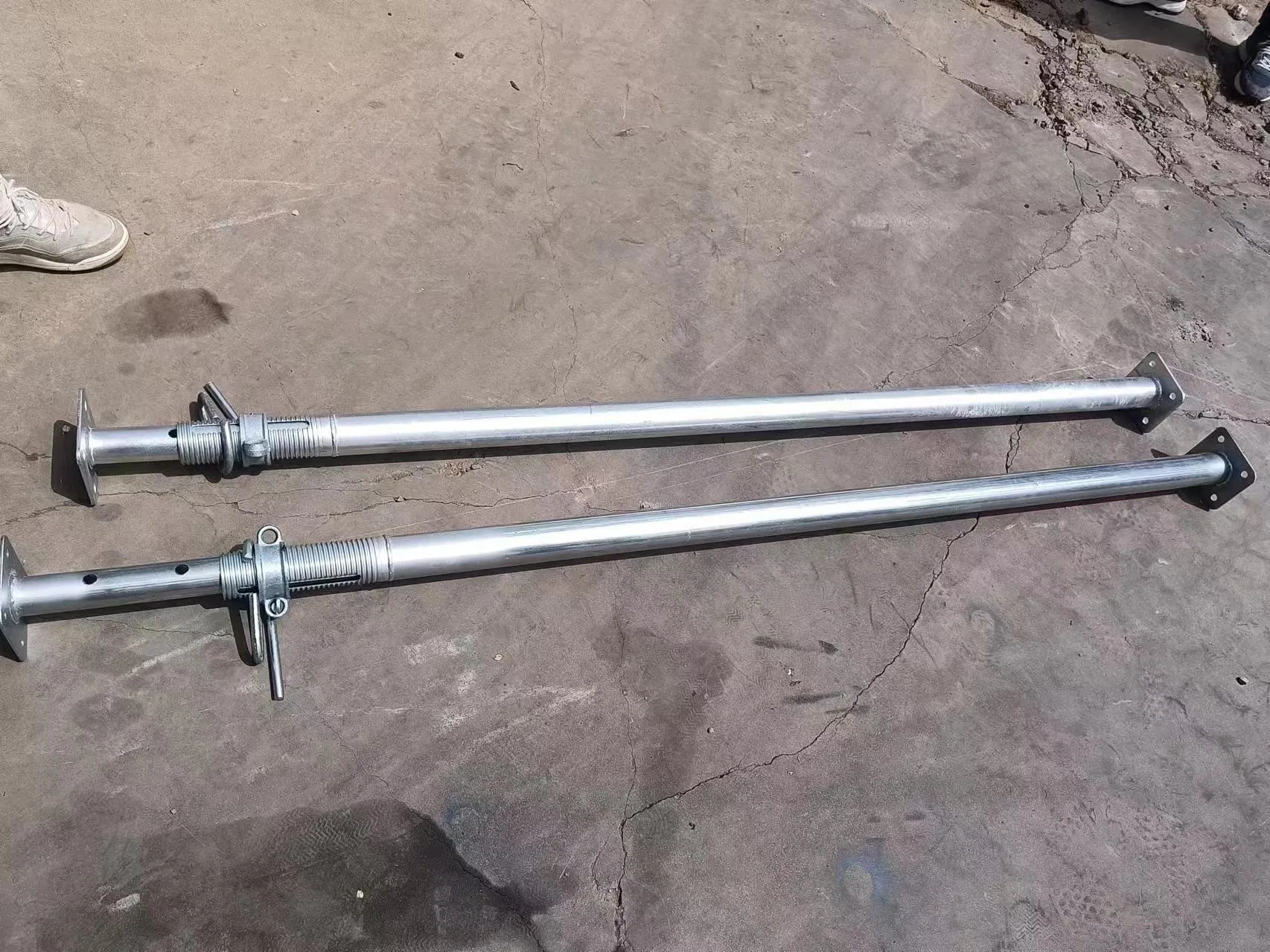

Galvanized Props

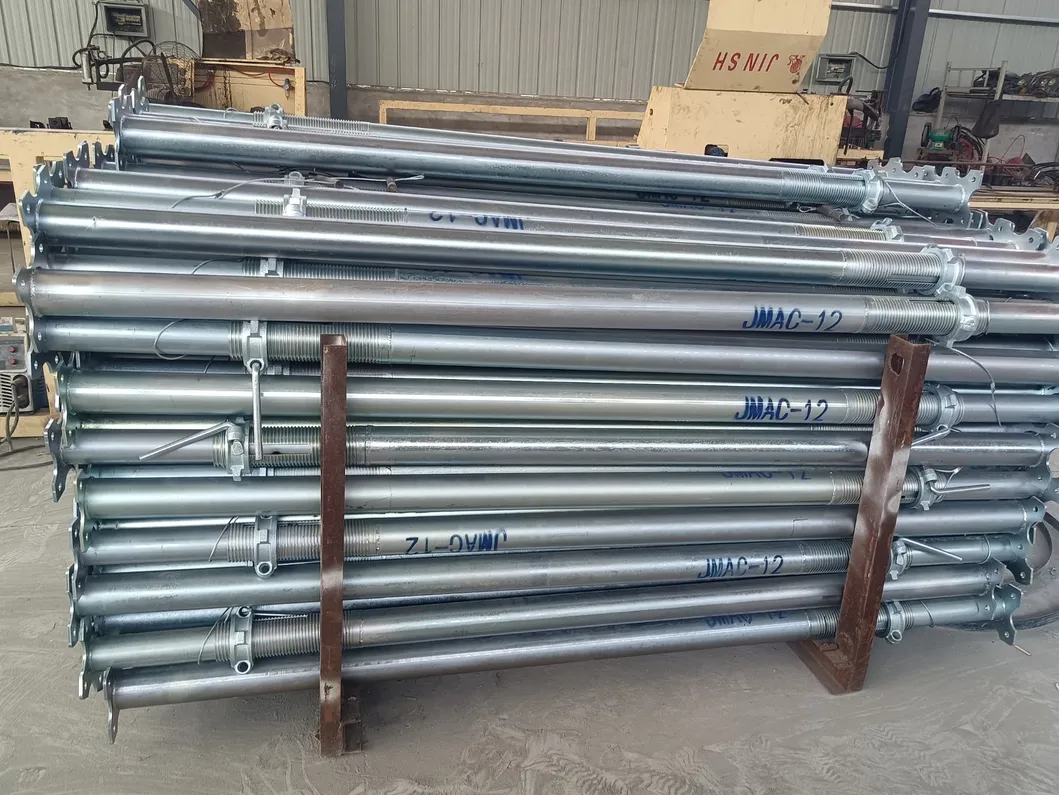

Steel Prop Storage
⚙️

Customization Details

Heavy Series
63.5mm/76mm & 60mm/76mm
Inner Tube
Q345 Seamless or Q235 Welding Pipe

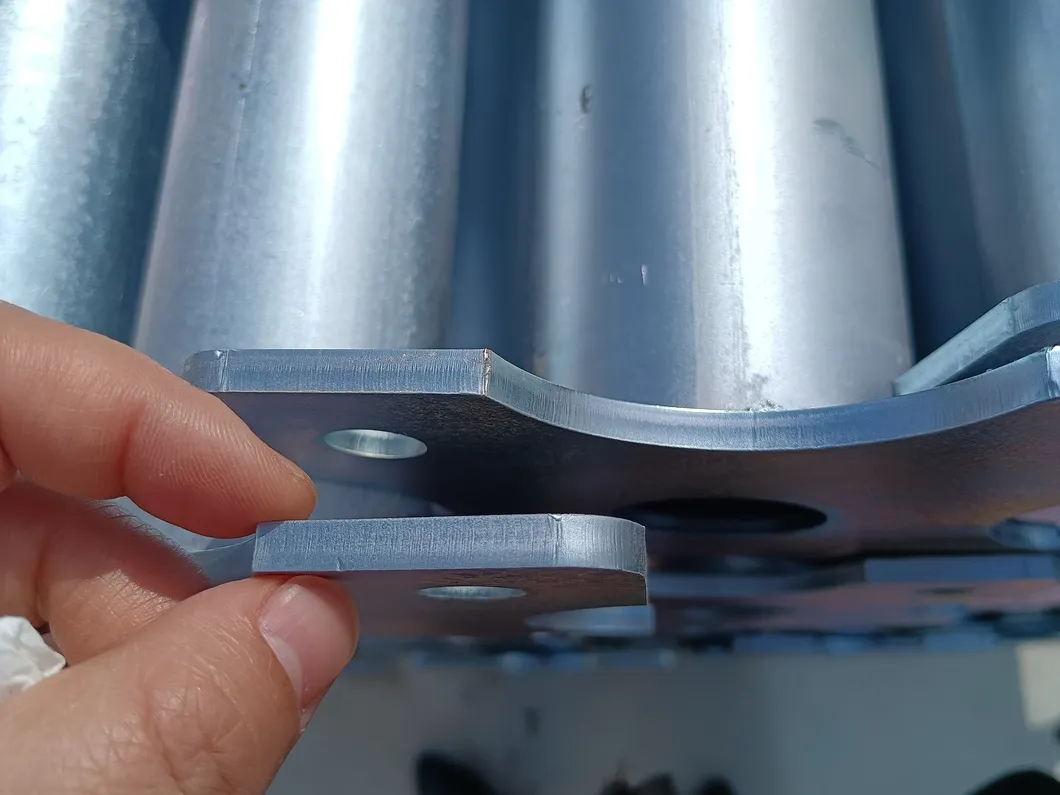

Base Plate
150*150*6mm (Butterfly Type)
Pin Material
18mm Diameter (40Cr Quenched)
Loading Qty
Approx. 1040 - 1150 PCS per 20' Container
Prop Components
Prop Head
Adjustable Nut

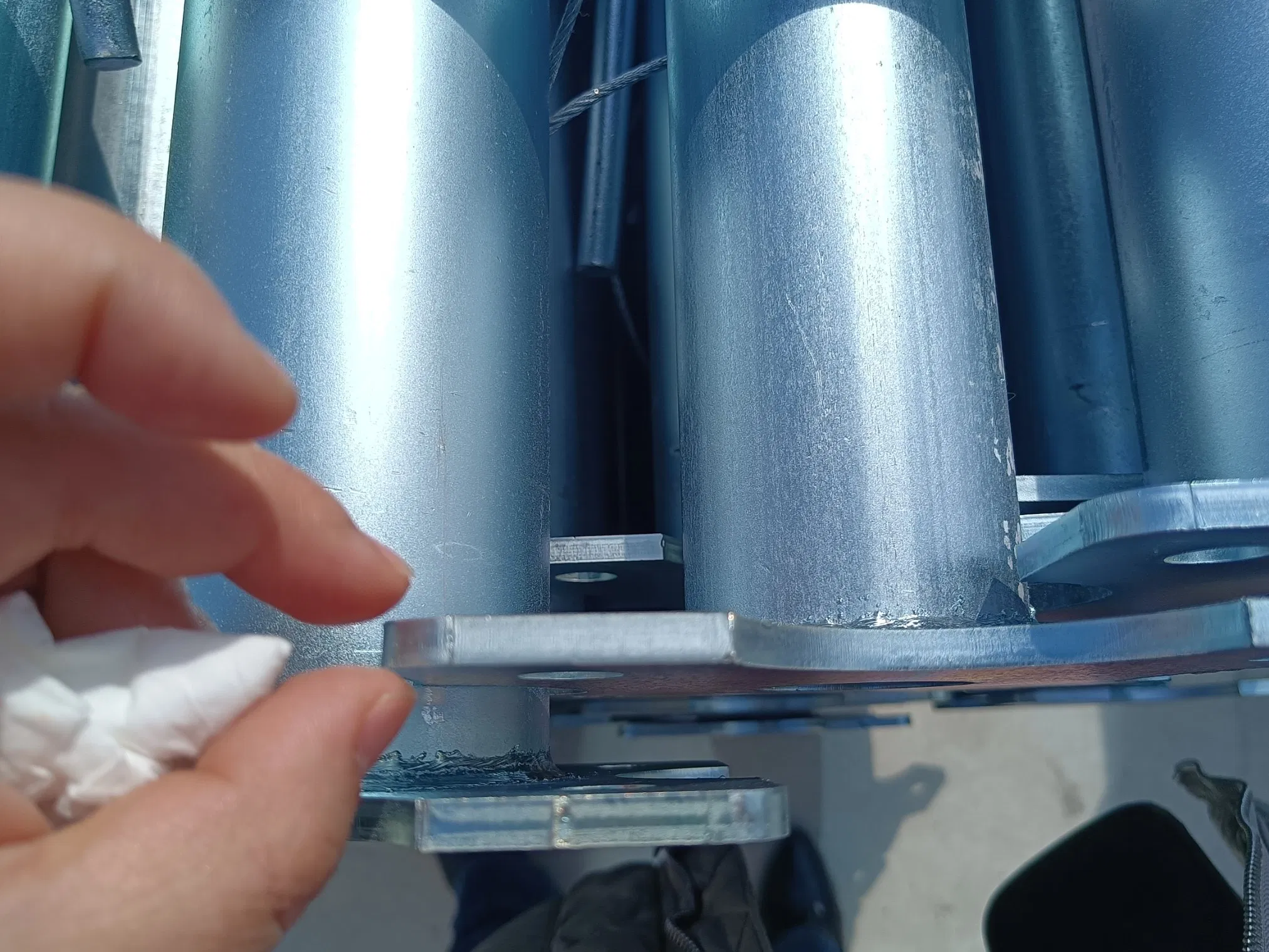

Base Plate Detail
Prop Thread

Frequently Asked Questions

What materials are used for the steel post shores?
We use high-quality Steel grades such as Q235, Q345b, and 40cr, as well as Cast Iron Steel for specific components like nuts and base plates.

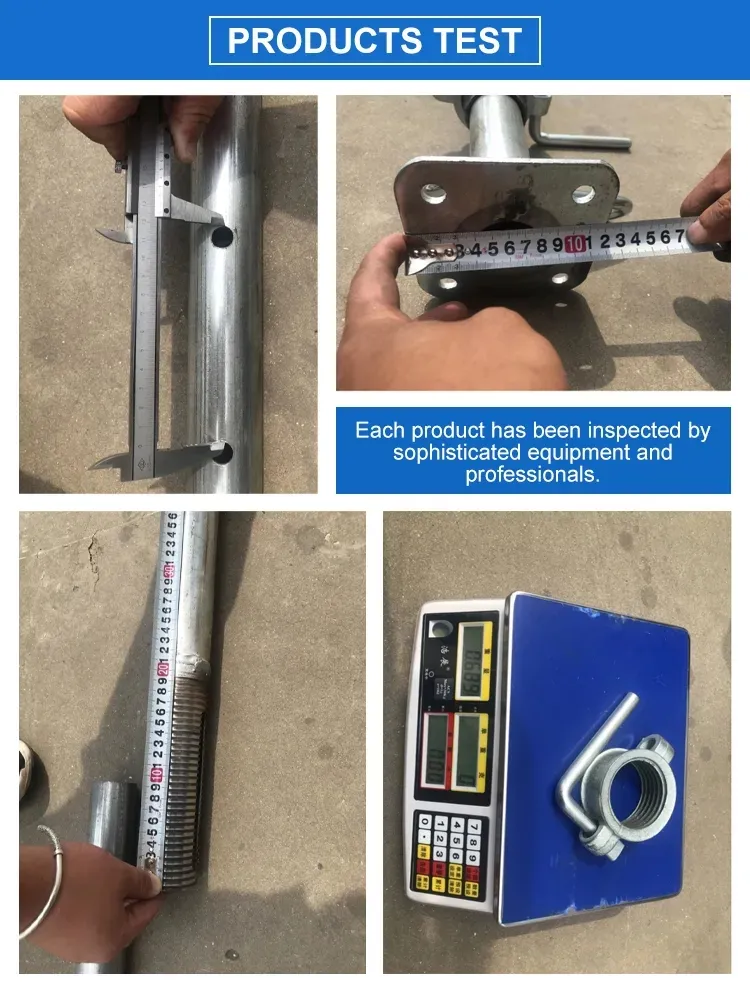

How do you guarantee the quality of the products?
Quality is ensured through a strict process: we always provide a pre-production sample before mass production and conduct a final inspection before every shipment.
Can I request customized sizes or features?
Yes, we accept OEM and ODM orders. We can customize tube diameters (e.g., 48/60mm, 76/63mm), wall thickness, adjustable lengths, and base plate types according to your specific requirements.
What surface treatments do you offer for rust prevention?
We provide several options including Painting, Powder Coating, Electro Galvanizing, and Hot Dip Galvanizing to ensure durability in various construction environments.
What is the typical loading capacity of these props?
Our steel props are designed for heavy-duty use with a loading capacity ranging from 18,000 to 38,000 lbs depending on the model and extension height.
What are the accepted delivery terms?
We support a wide range of delivery terms including FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DDP, and DDU to accommodate global shipping needs.

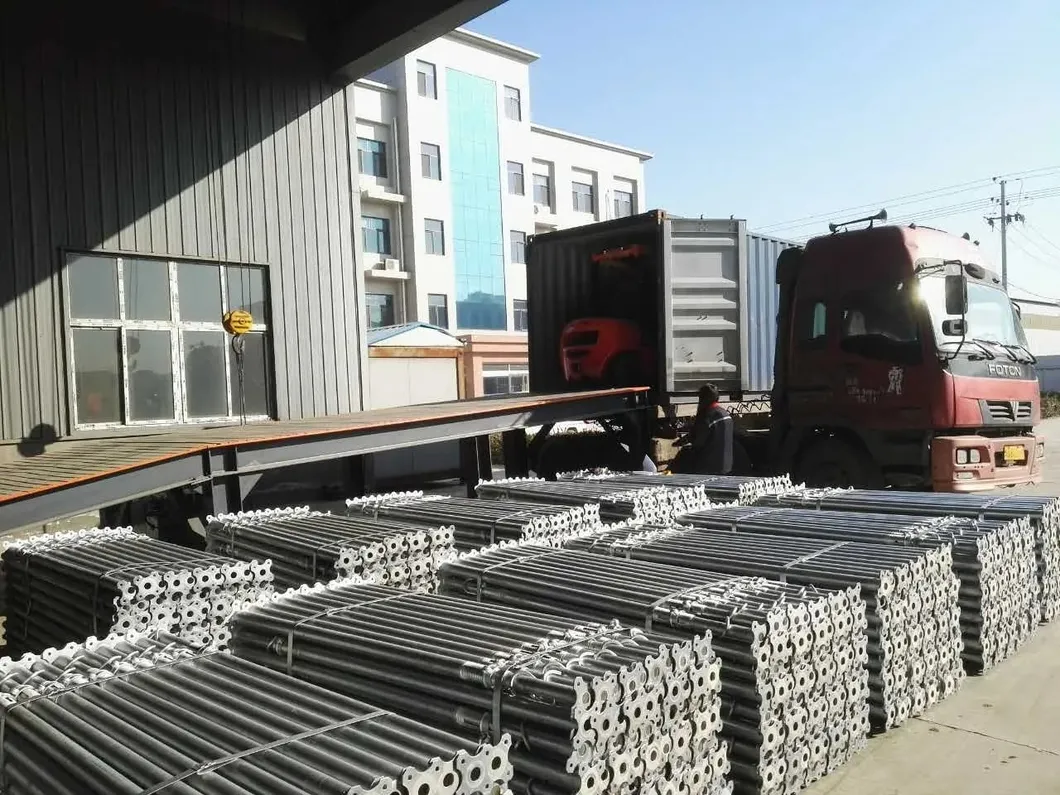

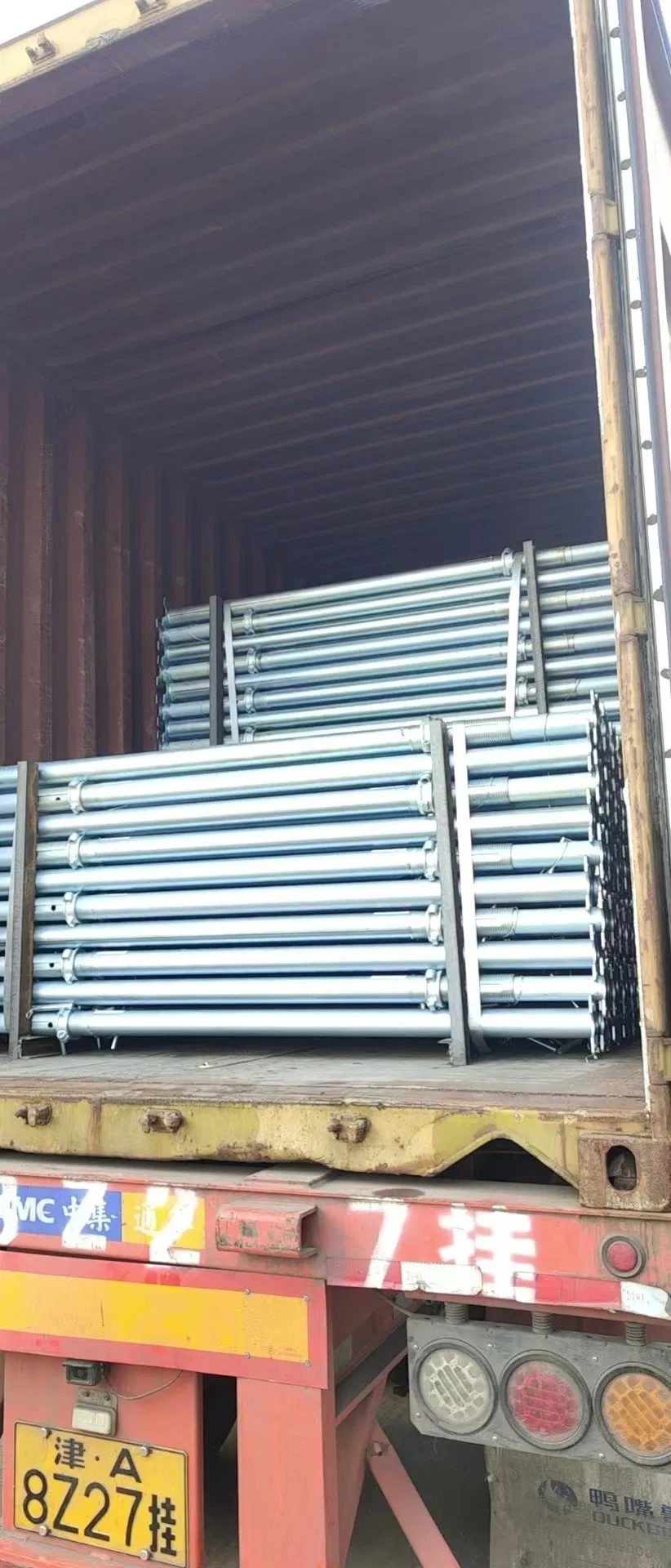

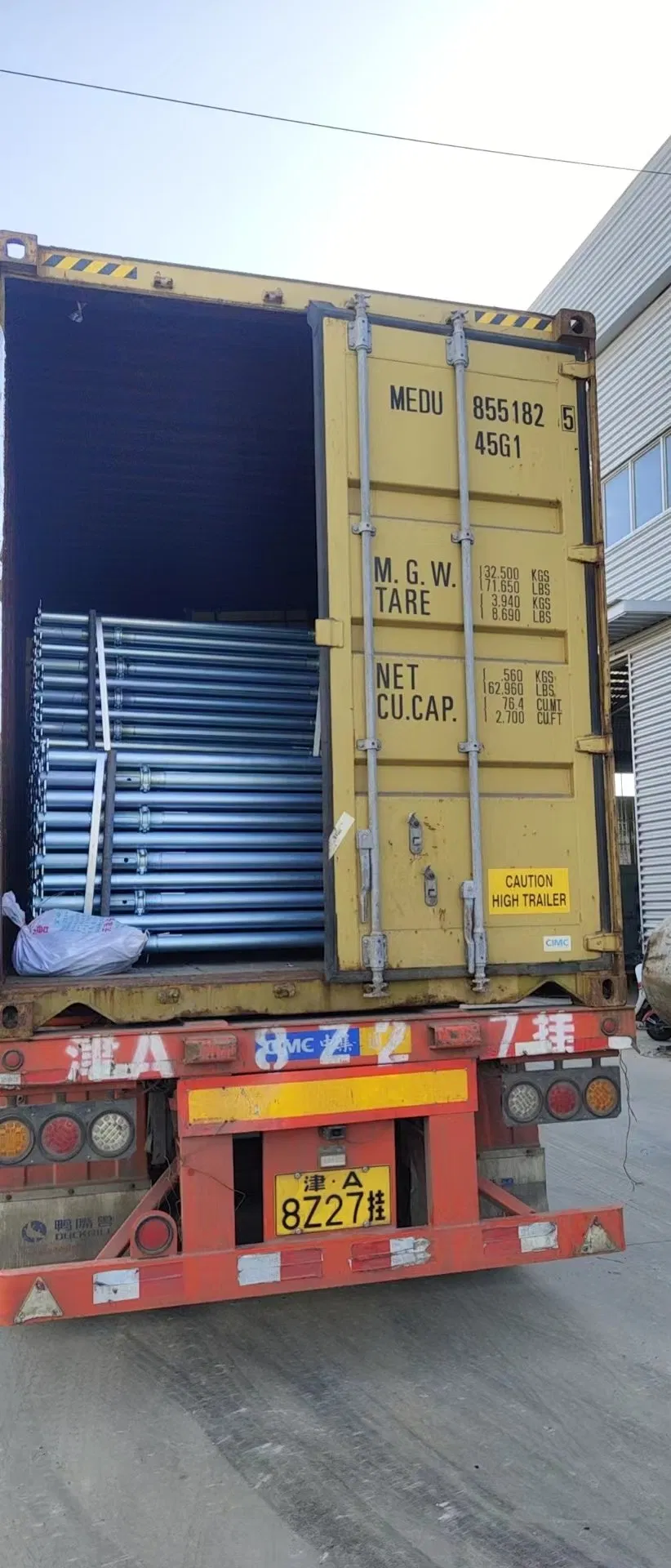

Factory Loading
